Available Pin Counts: 2P, 3P, 4P, 5P, 6P, 7P, 8P
Type: Female
Mounting Method: Front Panel Mount
Wiring Method: Board Insertion Type
Orientation: 90° Angled Pin Type
Applications: Power, Signal Transmission

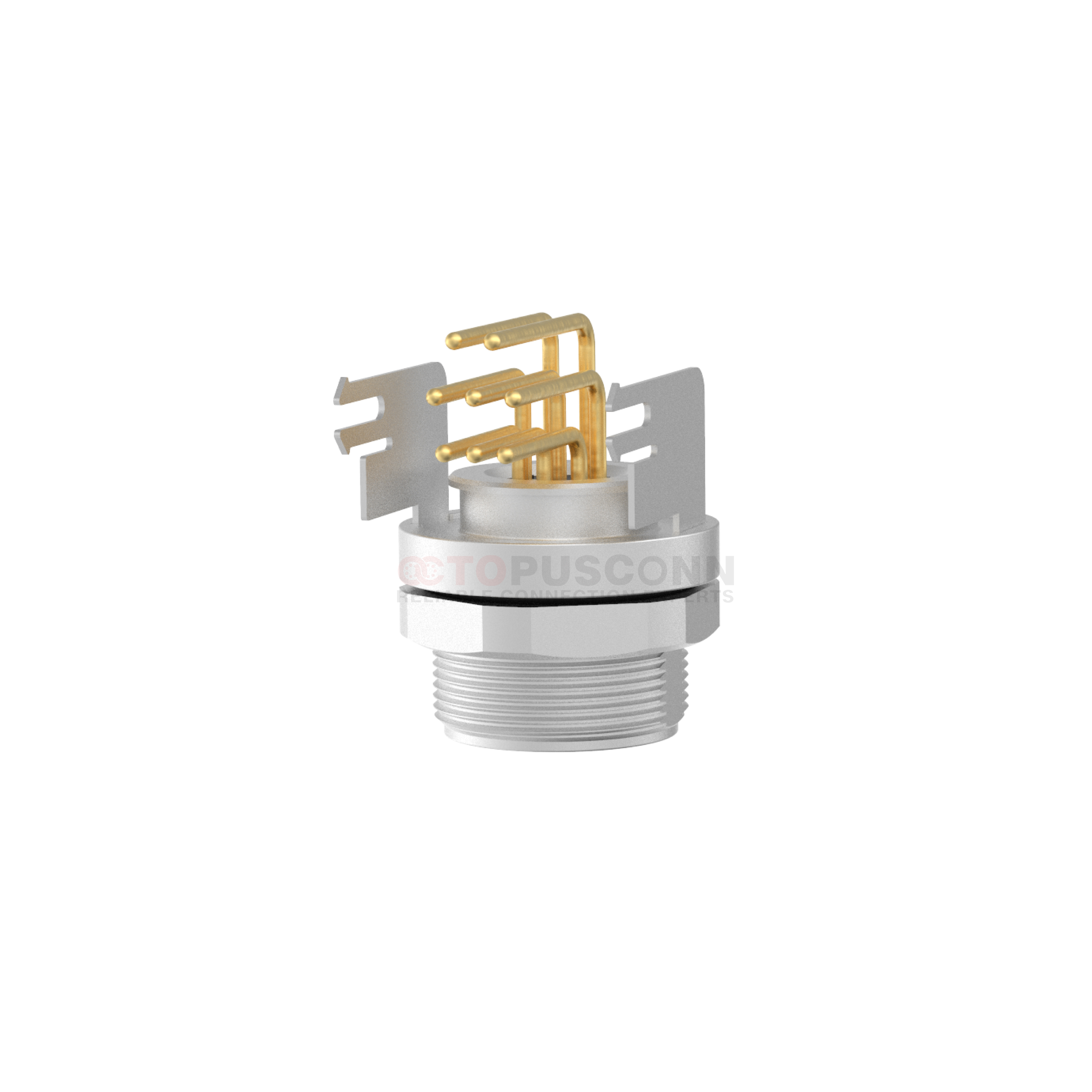

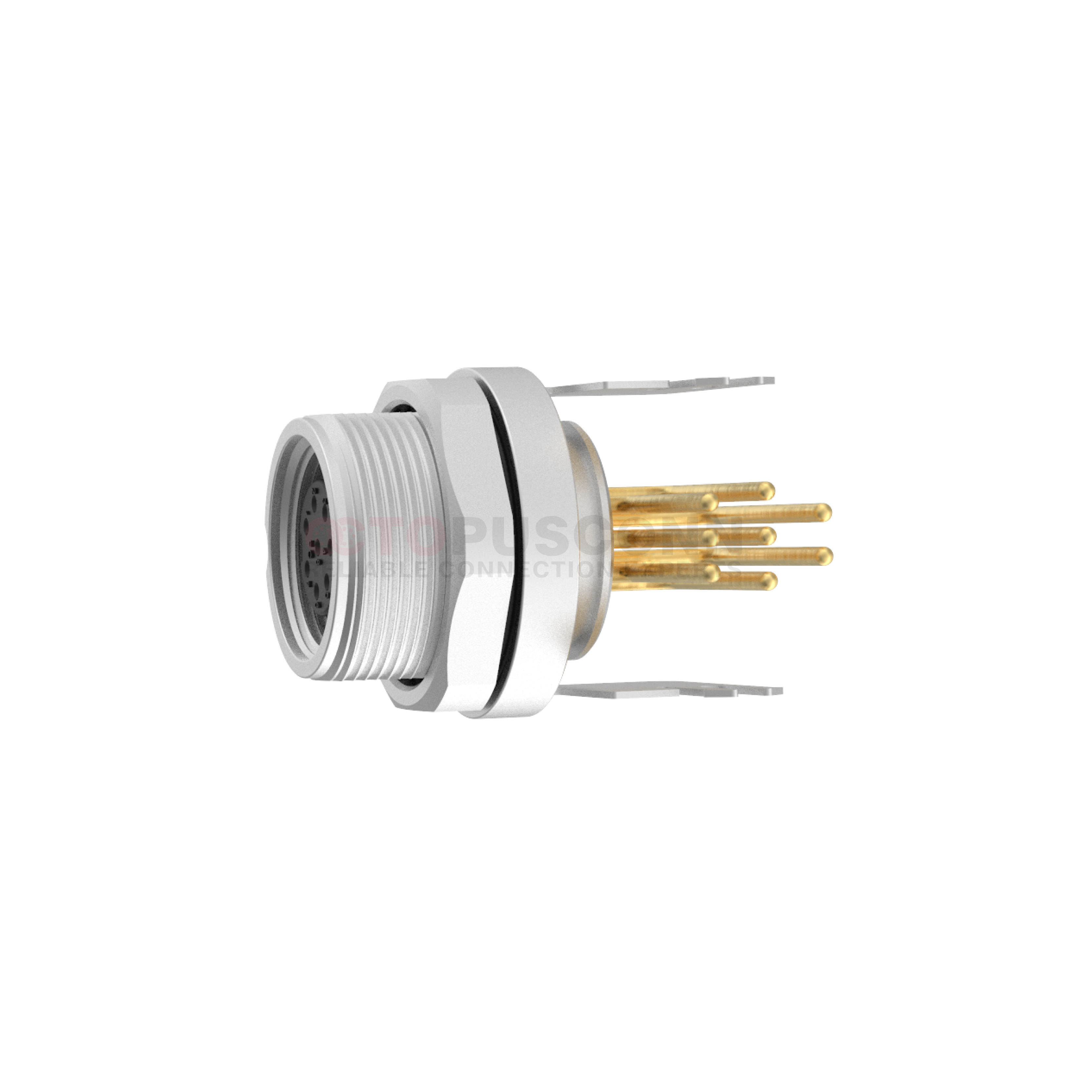

PCB Mount 90° Angled Press-Fit Type:
90° Angled Design for Compact Wiring
Unlike straight-pin models, the 90° angled pins allow cables to route horizontally along the circuit board or equipment surface after press-fit soldering. This significantly reduces cable bending stress, preventing issues such as cable breakage and aging caused by excessive flexing. Meanwhile, it ensures neater wiring, greatly saving vertical space inside equipment or on the board surface, and is suitable for high-density mounting environments.
Protection Adaptable to Various Environments
High-protection models with IP67 rating achieve complete dustproofing and short-term water immersion protection, meeting the sealing requirements of harsh industrial environments.
Some models are equipped with a shielded design to reduce electromagnetic interference (EMI) and ensure precise signal transmission.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
2
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
3
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
4
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
5
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
6
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
7
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
8
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
| Core | 2 | 3 | 4 | 5 |
| Male |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
||
| Core | 2 | 3 | 4 | 5 |
| Female |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
