Available Pin Counts: 2P, 3P, 4P, 5P, 6P, 7P, 8P
Type: Male
Orientation: 90° Angled Type
Applications: Power, Signal Transmission

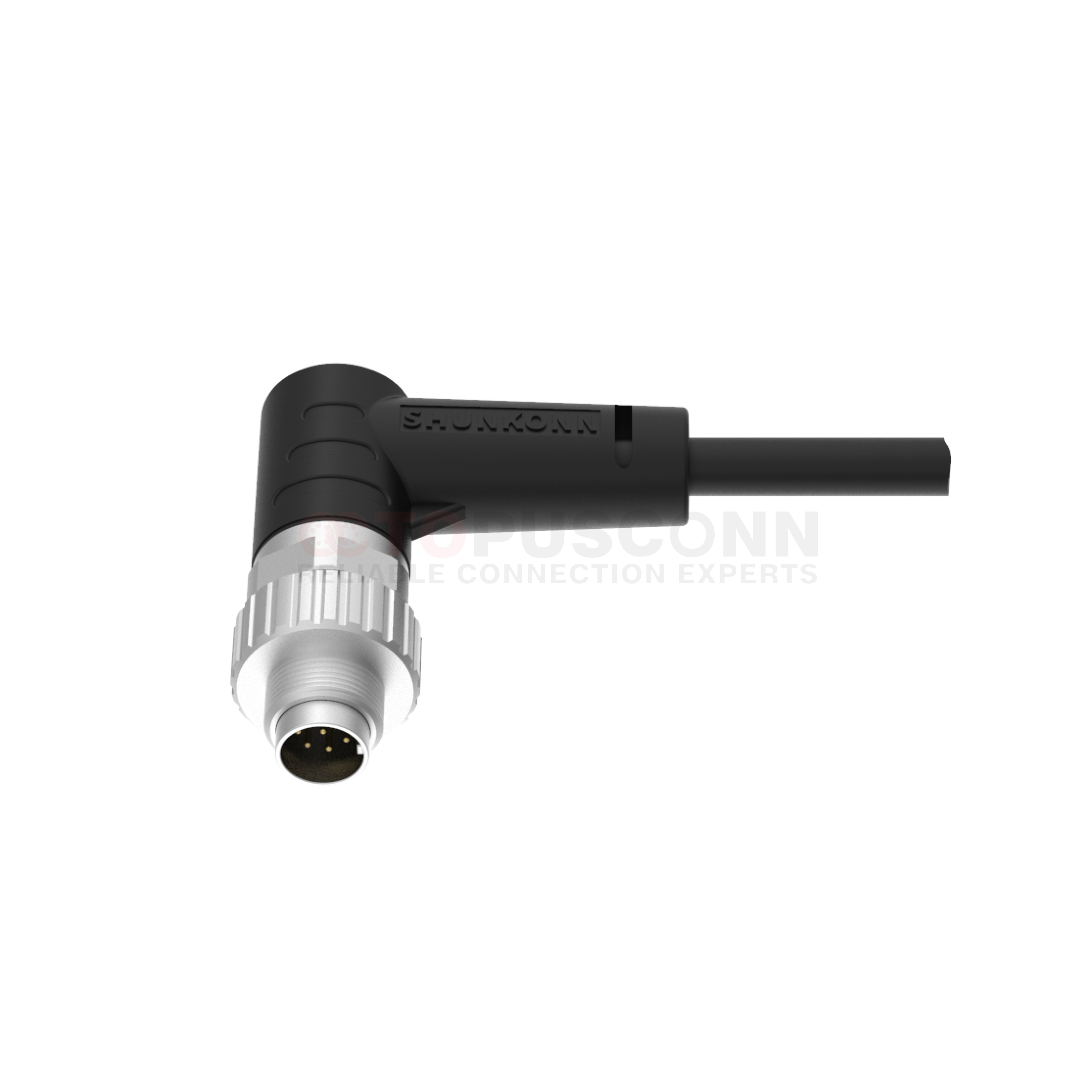

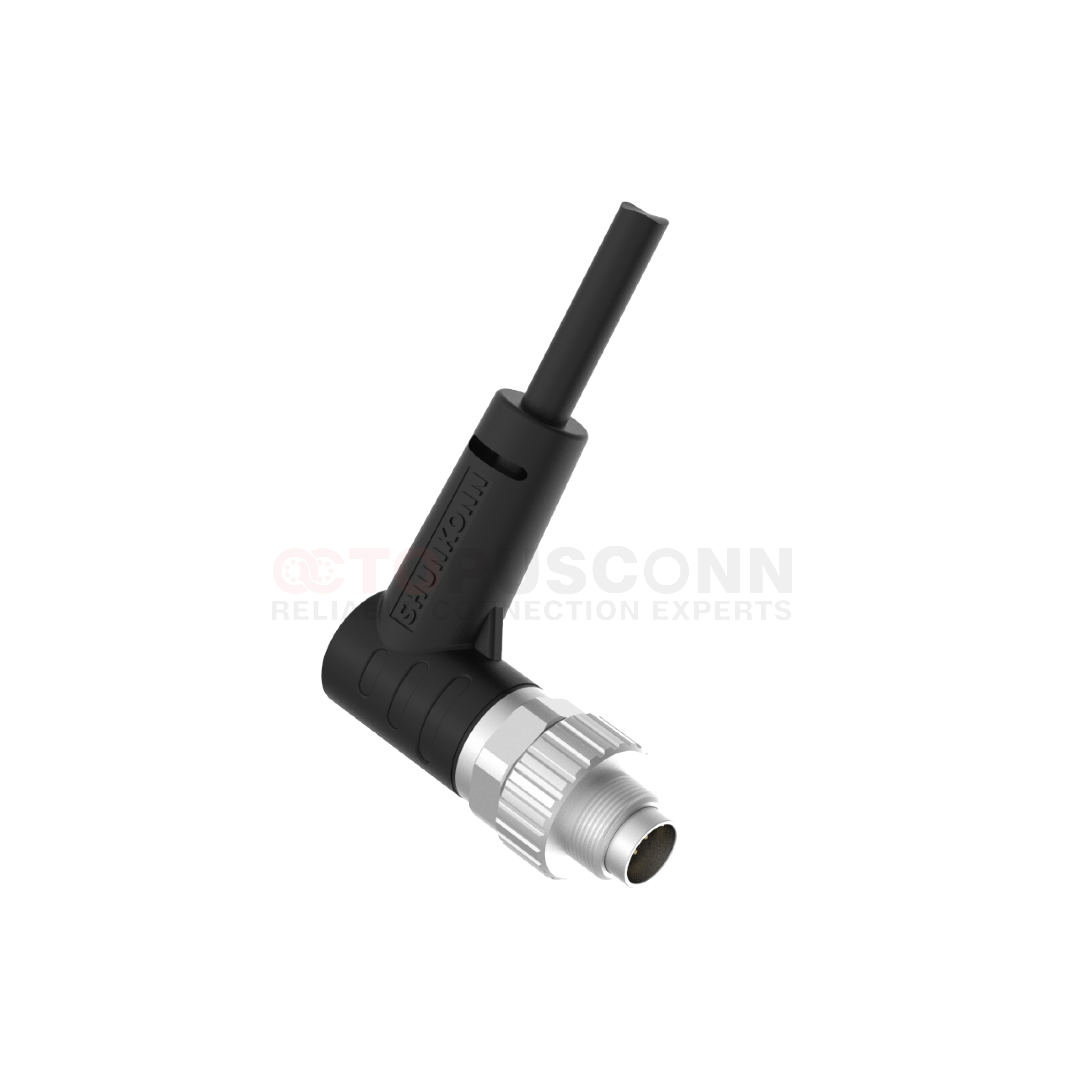

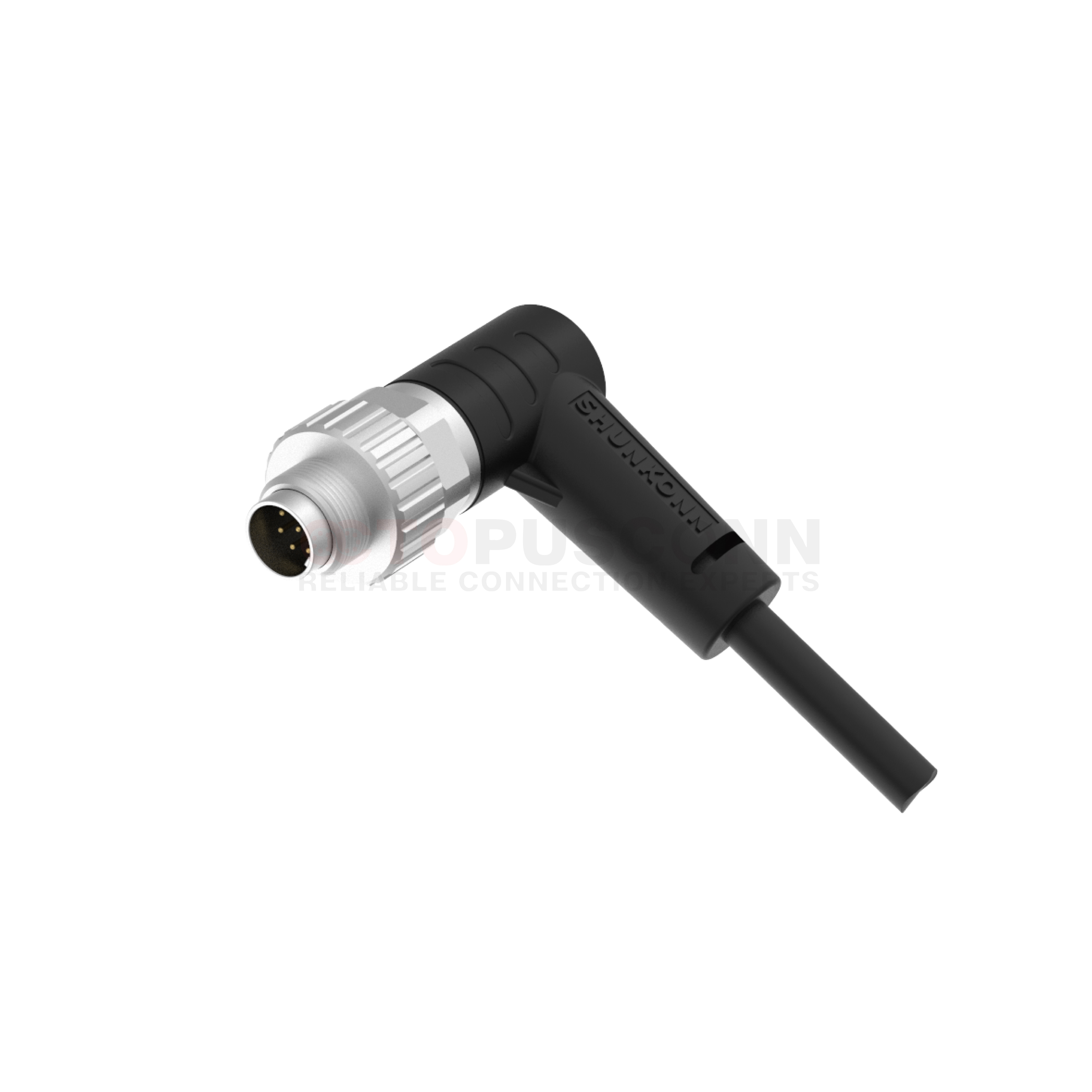

90° Angled Overmolded Precast Cable
Core 90° Angled Design
Featuring an overall L-shaped 90° bent structure, the junction between the connector and cable forms a seamless transition via the overmolding process. The cable bends and extends laterally along the connector, avoiding spatial interference with surrounding components during wiring.
Clear Identification & Locking Mechanism
Available in multiple configurations with 2–8 cores.
The connector is equipped with a standard M9 threaded locking mechanism. The coupling nut, constructed from nickel-plated brass, fits tightly when rotated to lock—effectively withstanding vibration during industrial equipment operation and preventing connection loosening.
Plug-and-Play for Time Efficiency
The precast manufacturing process completes the fixed connection between the connector and cable at the factory, eliminating the need for on-site welding or wiring. During installation, simply align the connector with the corresponding interface and tighten the threaded nut to secure it—significantly reducing on-site assembly errors and time costs.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
2
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
3
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
4
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
5
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
6
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
7
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
8
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
| Core | 2 | 3 | 4 | 5 |
| Male |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
||
| Core | 2 | 3 | 4 | 5 |
| Female |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
