Available Pin Counts: 3P, 4P
Type: Female
Wiring Method: Soldering Type
Applications: Power, Signal Transmission

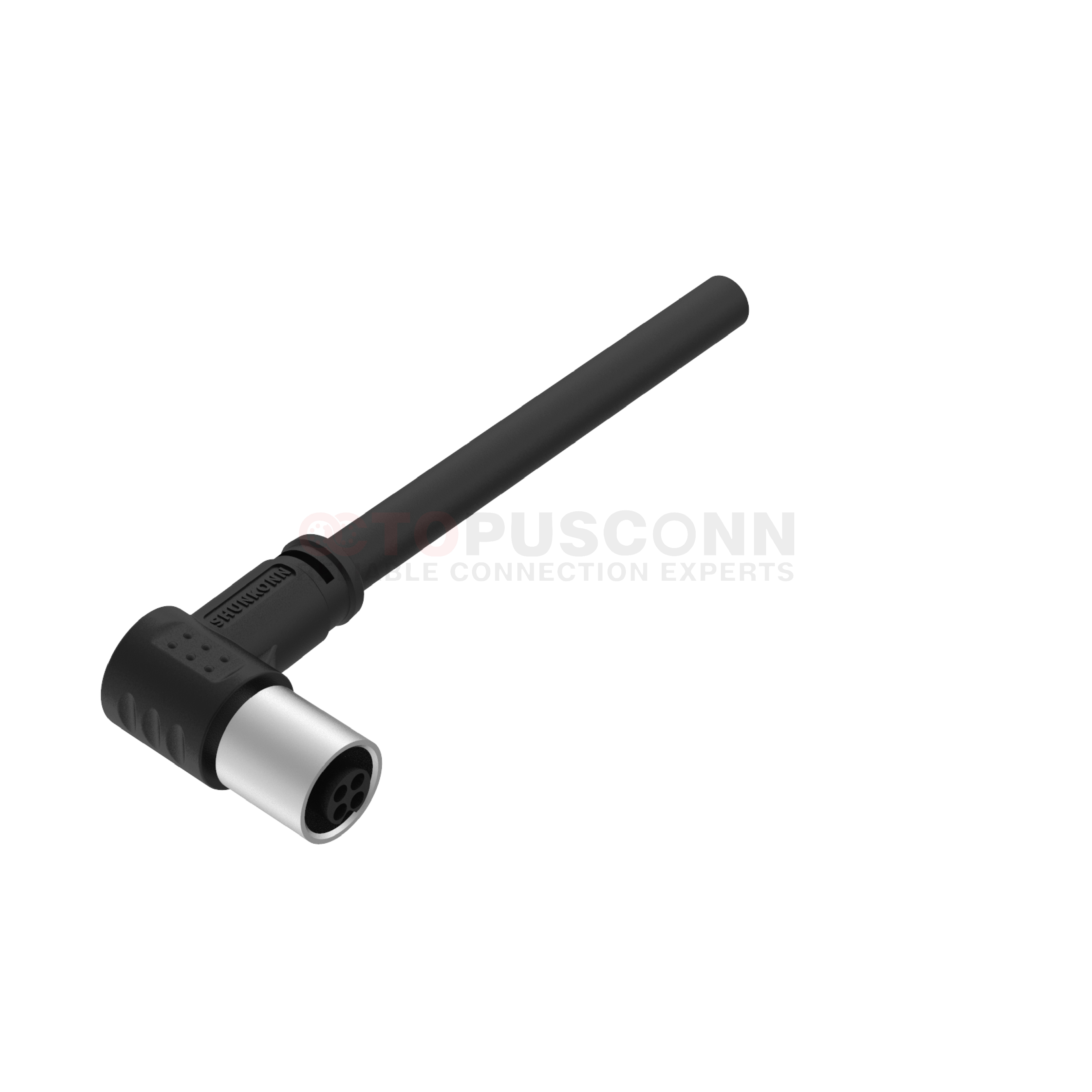

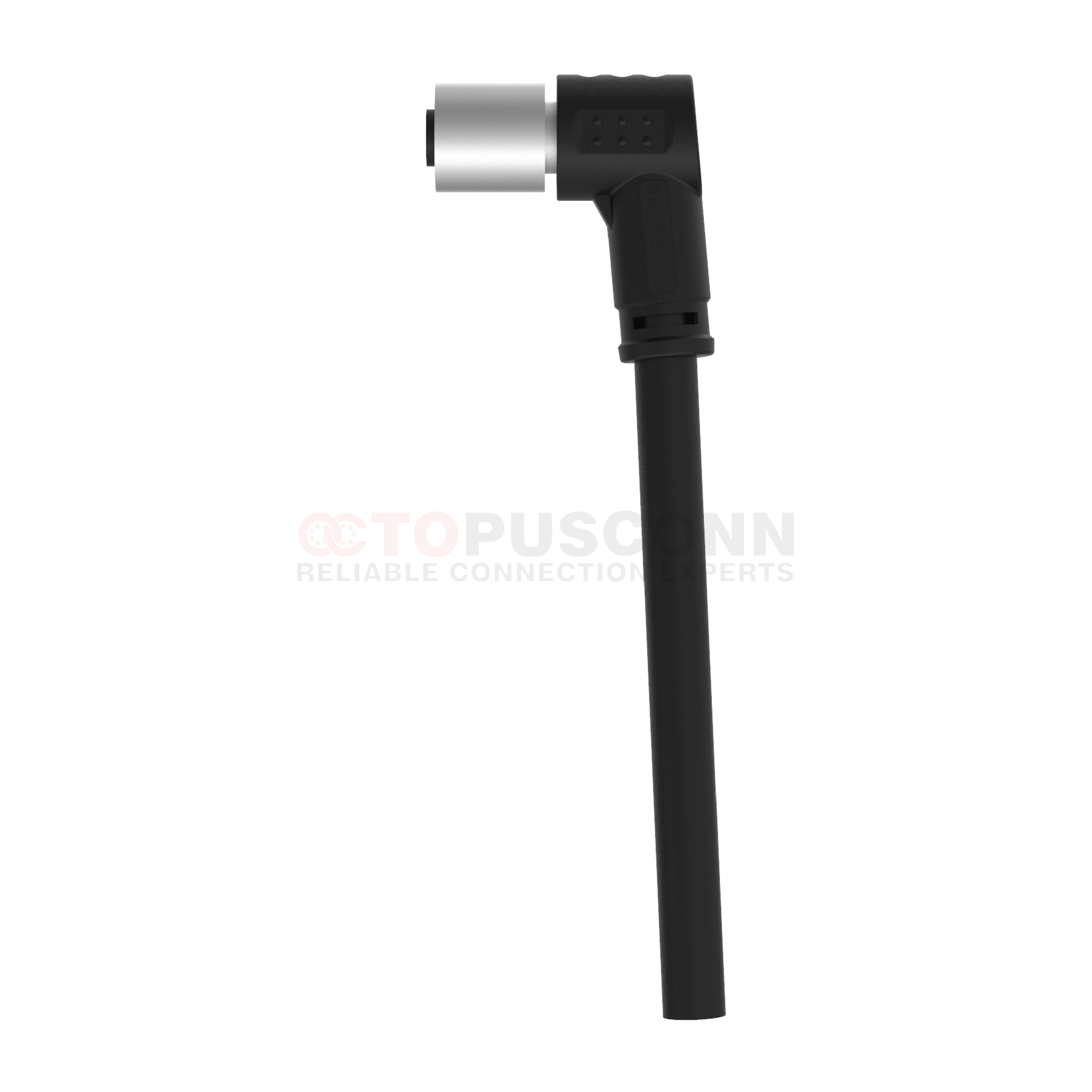

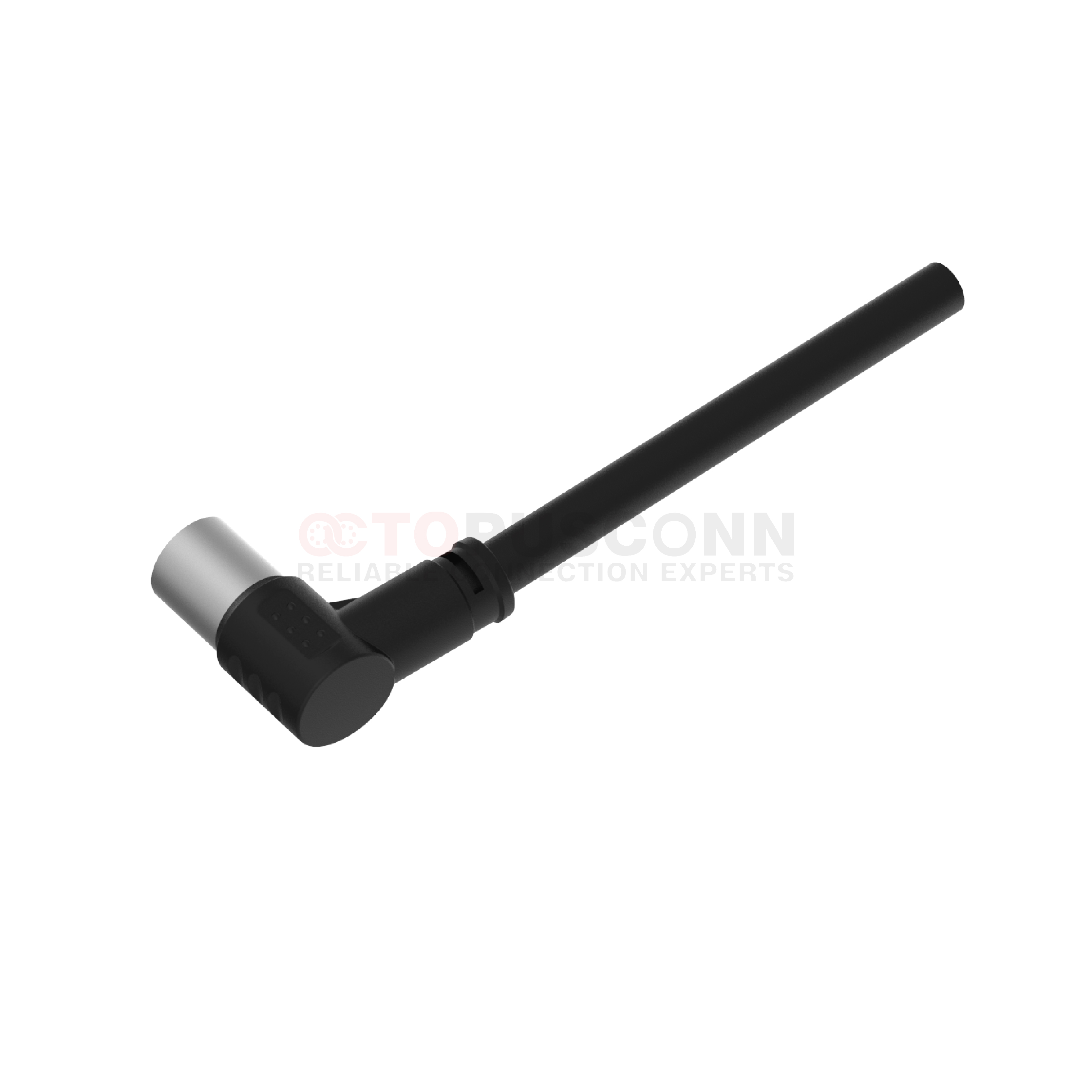

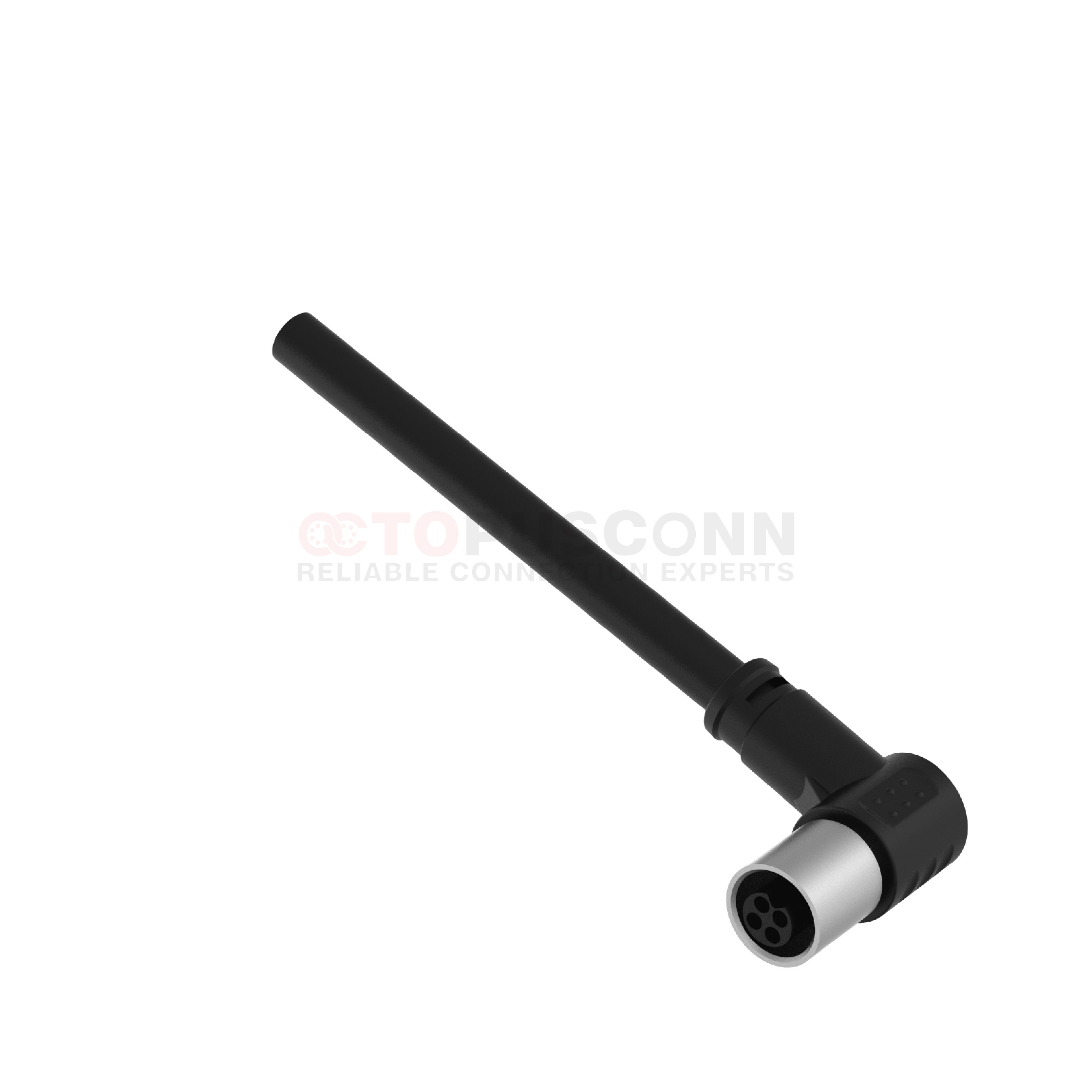

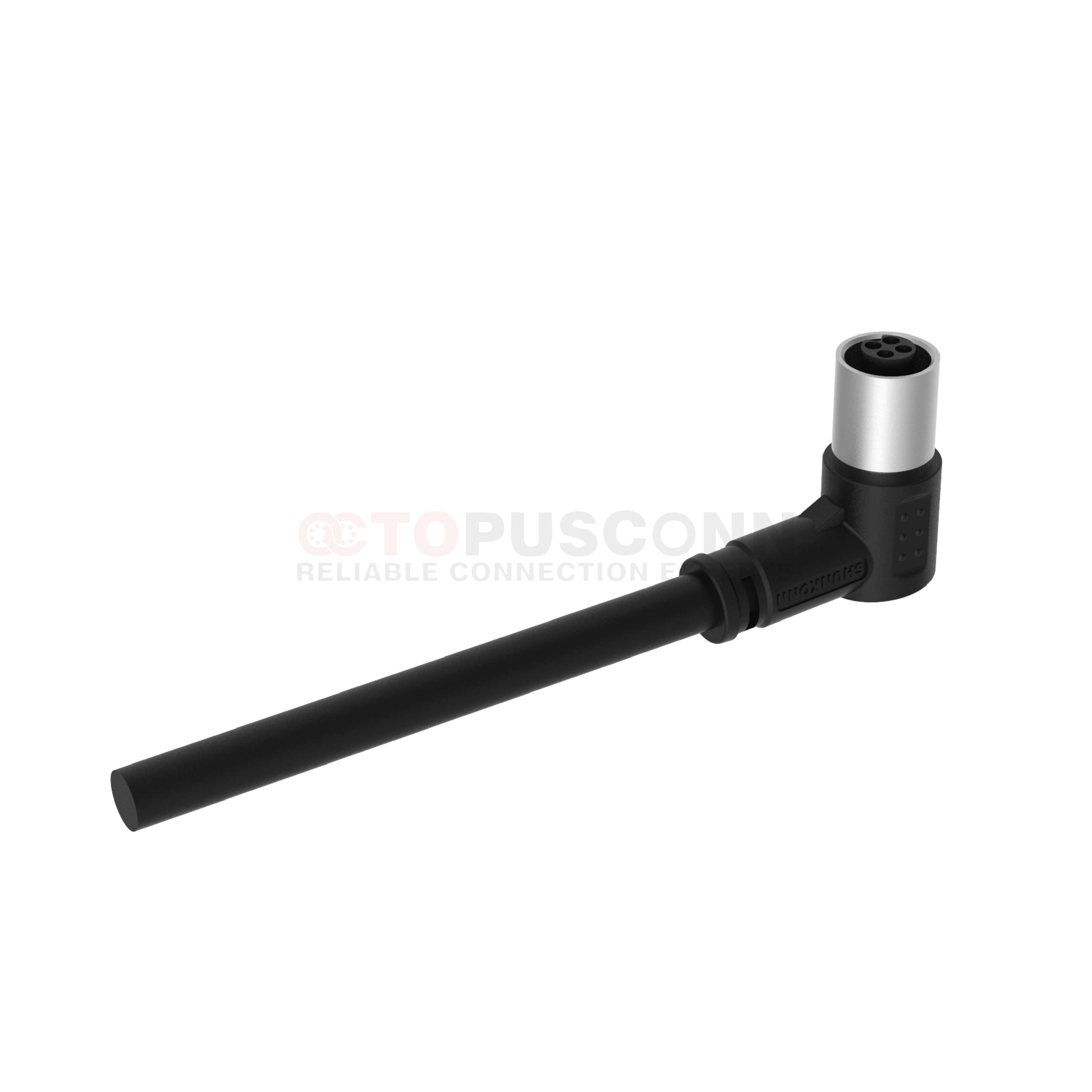

90-Degree Right-Angle Overmolded Type:
The "Terminator" for Narrow Space Wiring
The 90-degree angle design enables precise cable routing in vertical/horizontal directions, completely solving the problems of "cable tangling" and "excessive bending" caused by equipment interfaces being close to walls or crowded wire harnesses inside control cabinets. Compared with straight cables, it saves 30% of wiring space, making it particularly suitable for compact layout scenarios such as wall-mounted TVs and industrial cameras. Some models support left/right direction customization to meet asymmetric wiring requirements.
Optimized Installation & Operation Efficiency
Pre-molded construction eliminates on-site welding and assembly steps, allowing direct plug-and-play use, which improves installation efficiency by over 60%. Widely used in scenarios including industrial automation equipment interconnection, compact wiring of consumer electronics, outdoor special environment operations, and communication data transmission, it provides reliable signal and power connection solutions for various fields.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
3
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
|
4
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
| Core | 3 | 4 | Core | 3 | 4 |
| Male |
|
|
Female |
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
