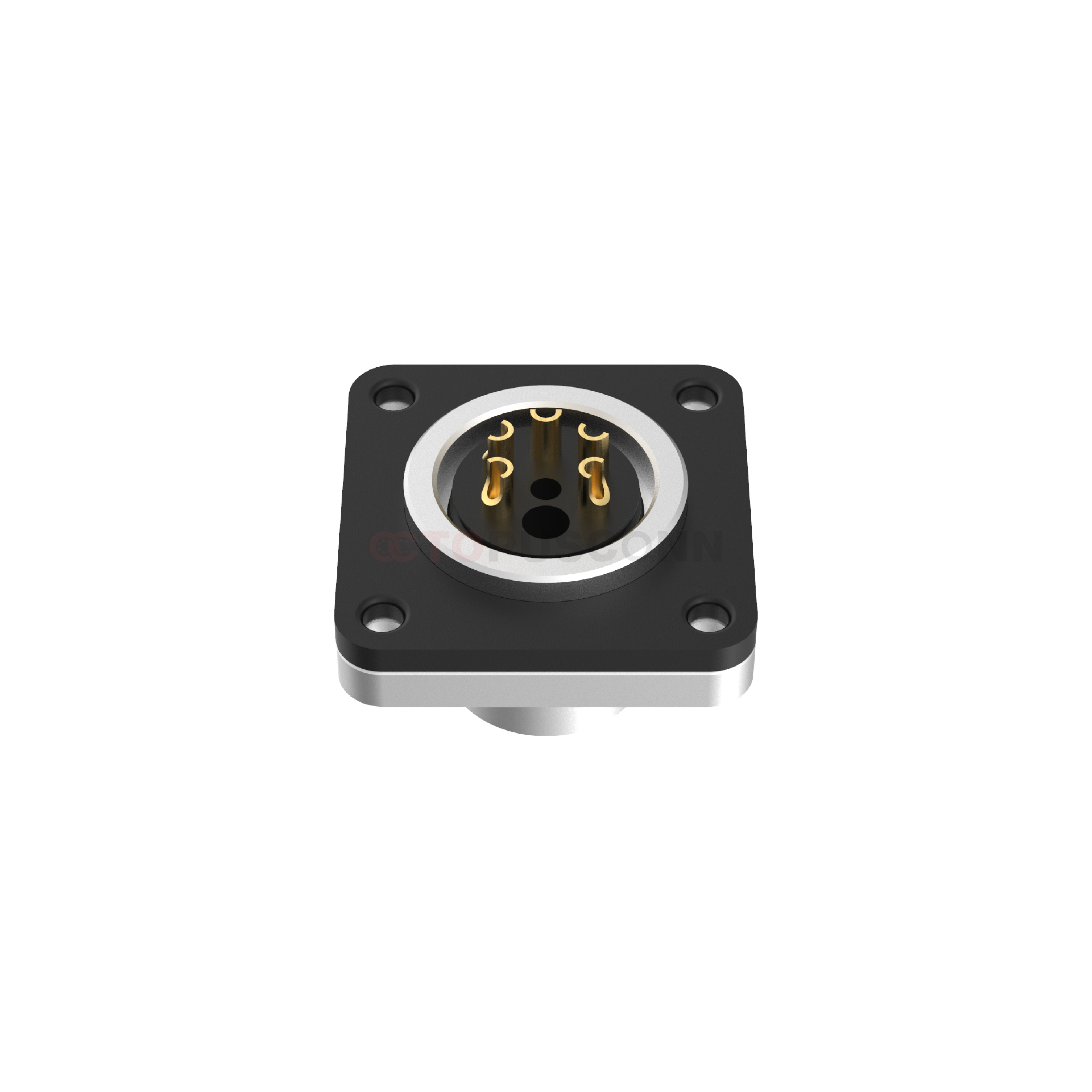

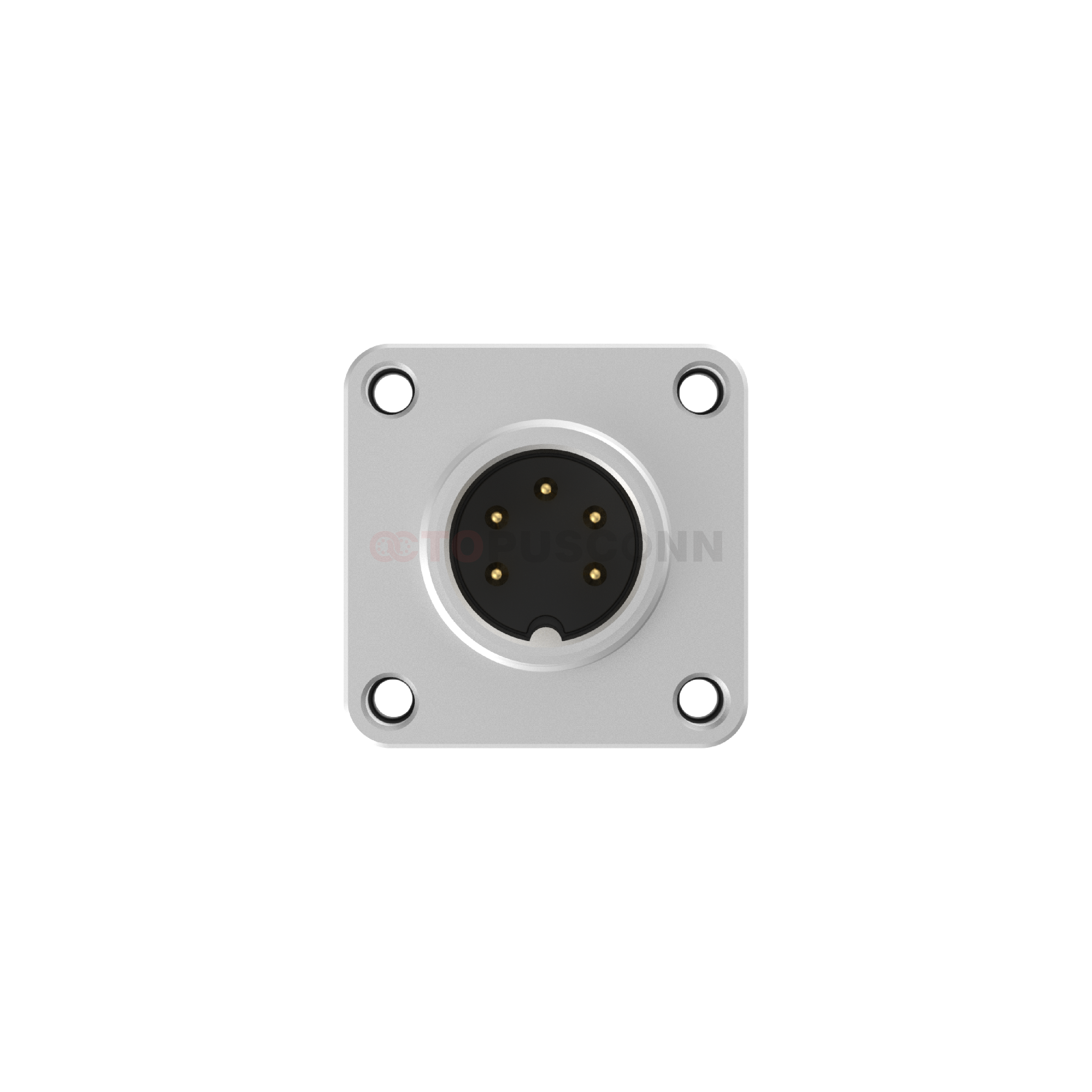

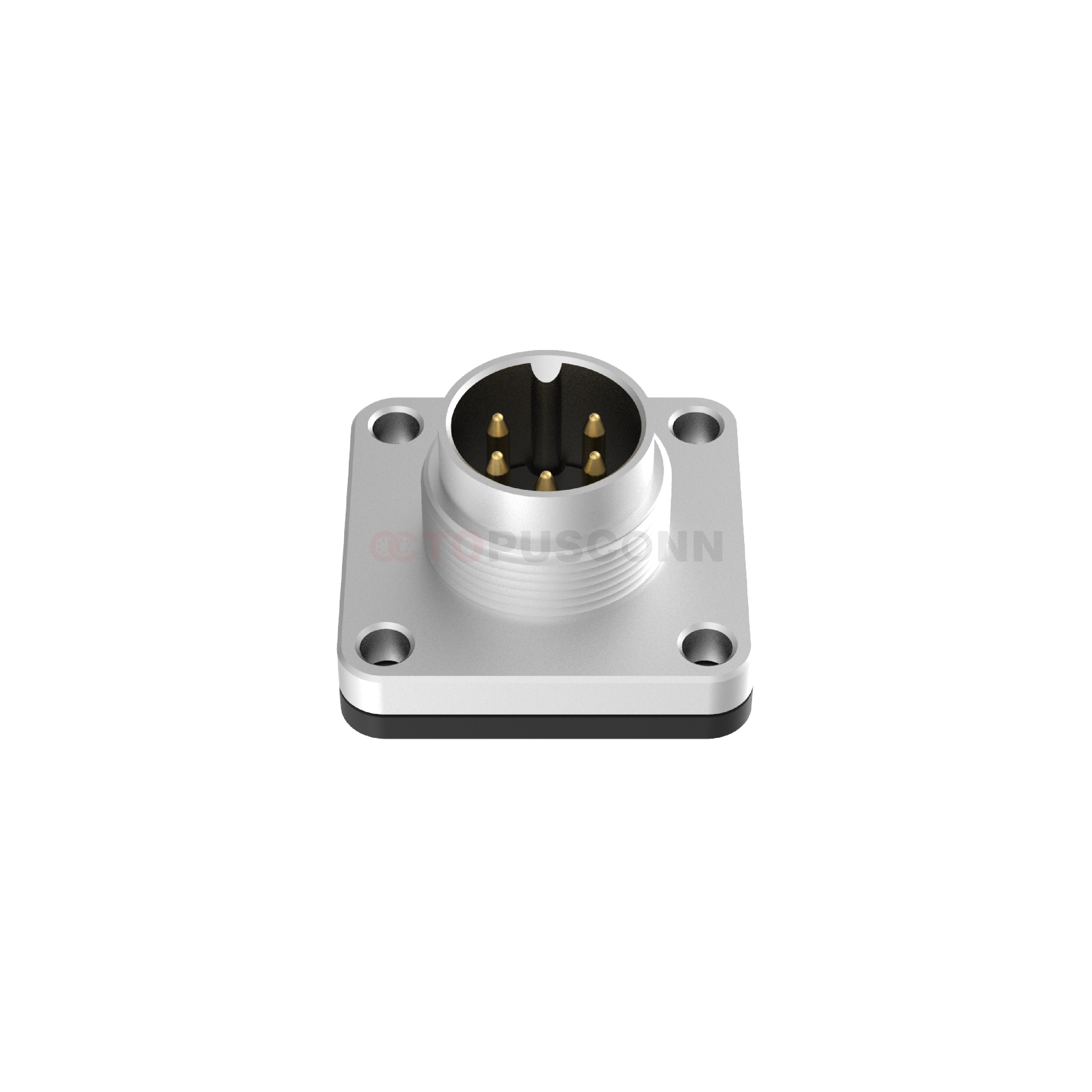

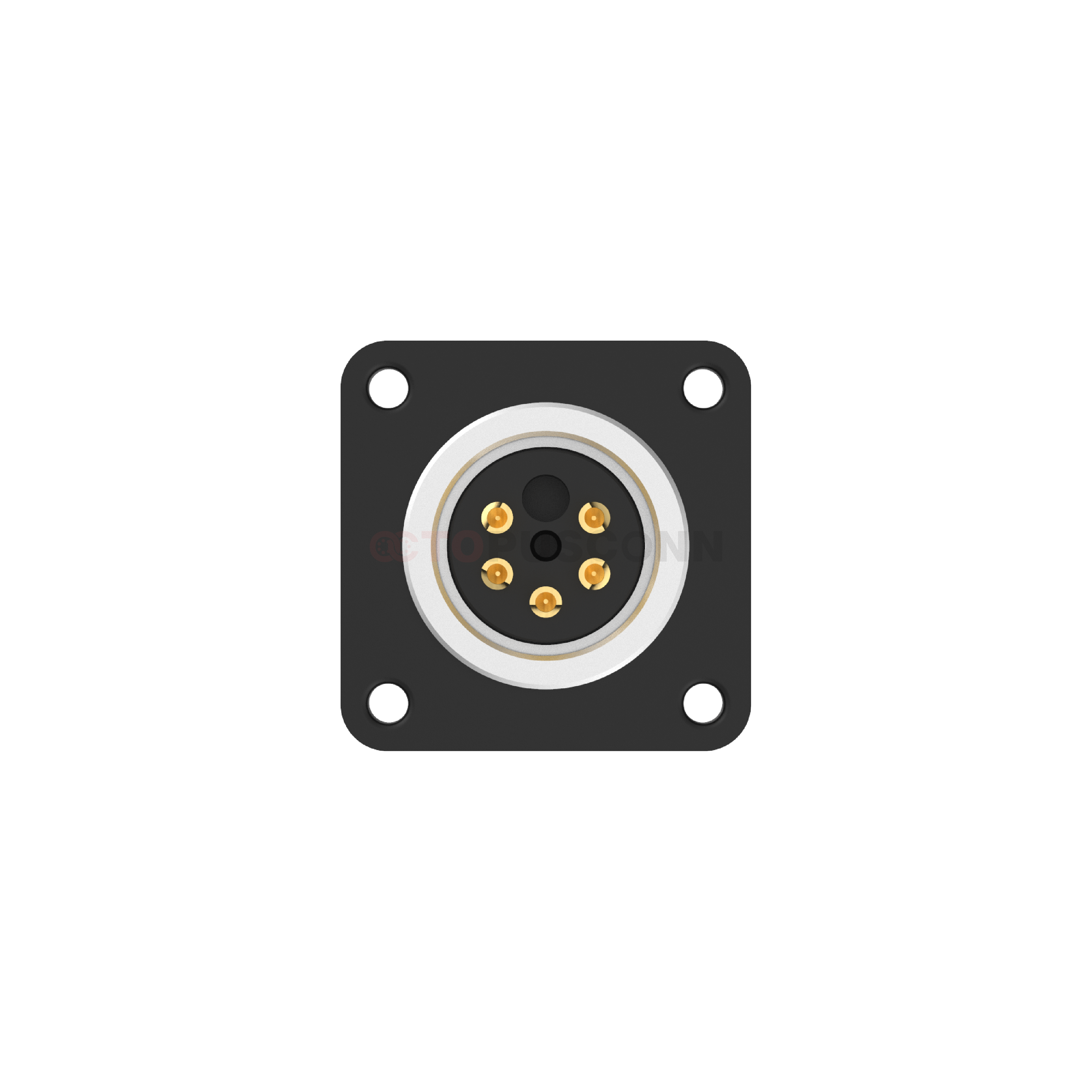

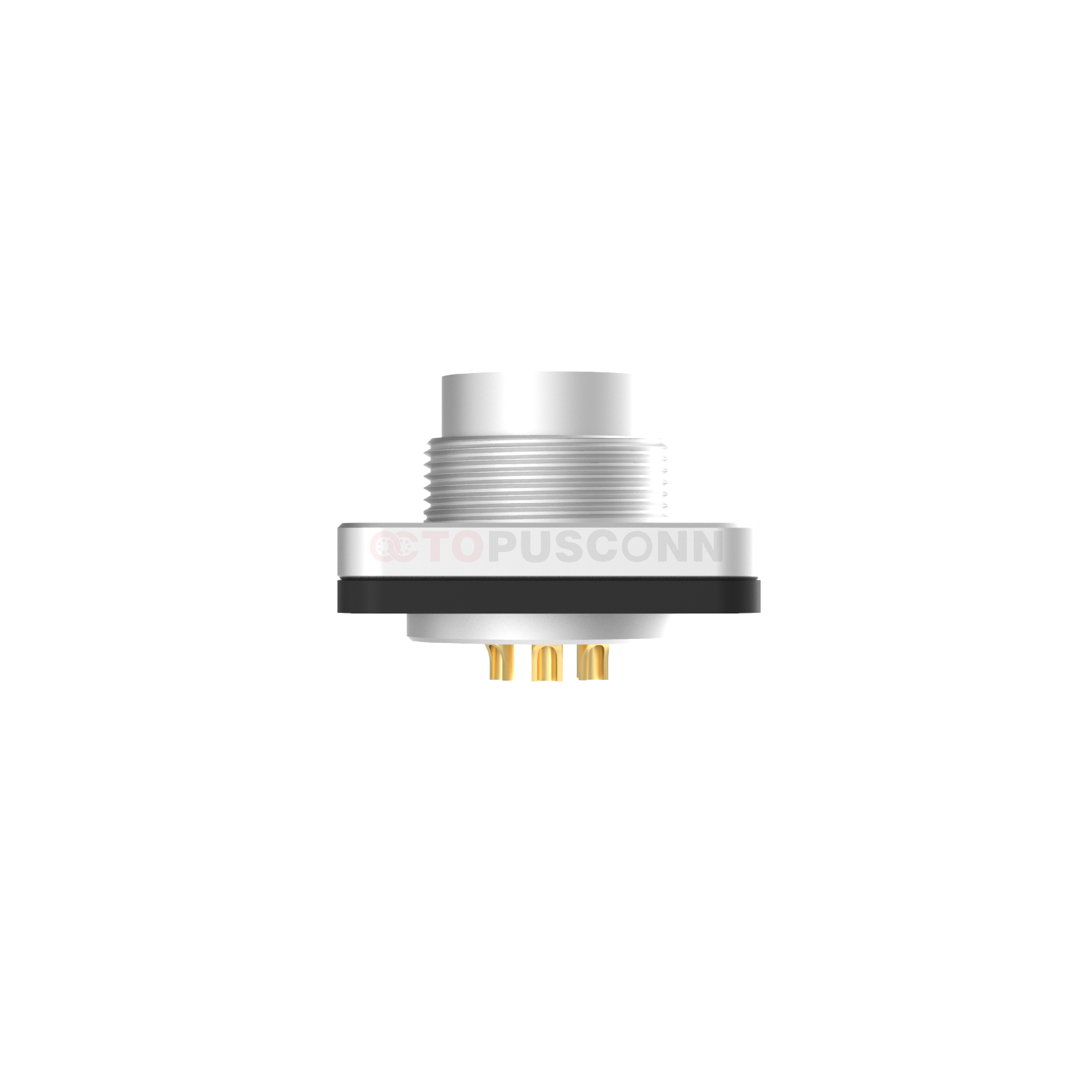

M16 Square Flange Connector 2-24PIN Male Type Soldered Type

M16 Square Flange Connector 2-24PIN Male Type Soldered Type

Serial Code : M16 Product Code : MC16NM-05F7LSLNS401 Product Info :

Available Pin Counts: 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P, 14P, 16P, 19P, 24P

Type: Male

Mounting Type: Wire-to-Wire Soldering

Applications: Power Transmission, Signal Transmission

Get a Quotation Sample Request

Technical Information

product type

M16 Circular Connector

Application

Electricity，Sign

Sensing Type

General

Contact

Male

2-24PIN

Thread Type

M16*0.75

IP Rating

IP67

Mating Cycles

>500Mating Cycles

Operating Temperature

-40℃ / 85℃

Product Specifications

Housing Material

Nickel-Plated Copper

Flame Retardant Rating

V0 (in compliance with UL 94 P)

Sealing Material

Epoxy Resin / Rubber

Contact Material

Gold-Plated Copper

Contact Carrier Material

PA9T

Electrical Parameters

Product Model	PIN	Rated Current	Rated Voltage		Wire Gauge / Size
Product Model	PIN	Rated Current	A/C	D/C	AWG	mm²
MC16NM-02F7LSLNS401	2	7A	250V	32V	20	0.75
MC16NM-03F7LSLNS401	3	7A	250V	32V	20	0.75
MC16NM-04F7LSLNS401	4	6A	250V	32V	20	0.75
MC16NM-05F7LSLNS401	5/5A	6A	60V	32V	20	0.75
MC16NM-06F7LSLNS401	6	5A	250V	32V	20	0.75
MC16NM-07F7LSLNS401	7/7A	5A	125V	32V	20	0.75
MC16NM-08F7LSLNS401	8	5A	60V	32V	20	0.75
MC16NM-12F7LSLNS401	12	3A	60V	32V	24	0.25
MC16NM-14F7LSLNS401	14/14A	3A	30V	32V	24	0.25
MC16NM-16F7LSLNS401	16	3A	30V	32V	24	0.25
MC16NM-19F7LSLNS401	19	3A	30V	32V	24	0.25
MC16NM-24F7LSLNS401	24	1A	30V	32V	26	0.14

Encoding Parameters

PIN	2	3	4	5	PIN	5A
Male					Male
	6	7	8	12		7A

	14	16	19	24		14A

PIN	2	3	4	5	PIN	5A
Female					Female
	6	7	8	12		7A

	14	16	19	24		14A

Safety Tips

The connector must not be unplugged or plugged in under load. Failure to comply and improper use can cause personal injury.

The connector was developed for application in factory engineering, control and electrical equipment construction.

Users are responsible for checking whether the connector can also be used in other applications.

Connectors used in circuits with dangerous voltages of electric shock can only be installed and used by personnel trained in electrical engineering, or under their supervision, while considering applicable regulations and standards.

Users must take appropriate safety precautions to ensure that the connector does not accidentally disconnect.

Install with moderate force, use special tools to tighten the nuts, avoid excessive force that causes the shell to deform or the pins to bend. Ensure that the plug and socket are fully engaged.

Do not power on when not locked. To prevent arcing due to poor contact, the shell protection grade is IP67 and IP68.

Plug connectors for use in water are not suitable. When used outdoors, the plug connector must be separately protected against corrosion. For further information on IP protection grades, please refer to "Technical Information".
