Core Count: 2P, 3P, 4P
Category:Male
Direction:180°
Applications: Power, Signal

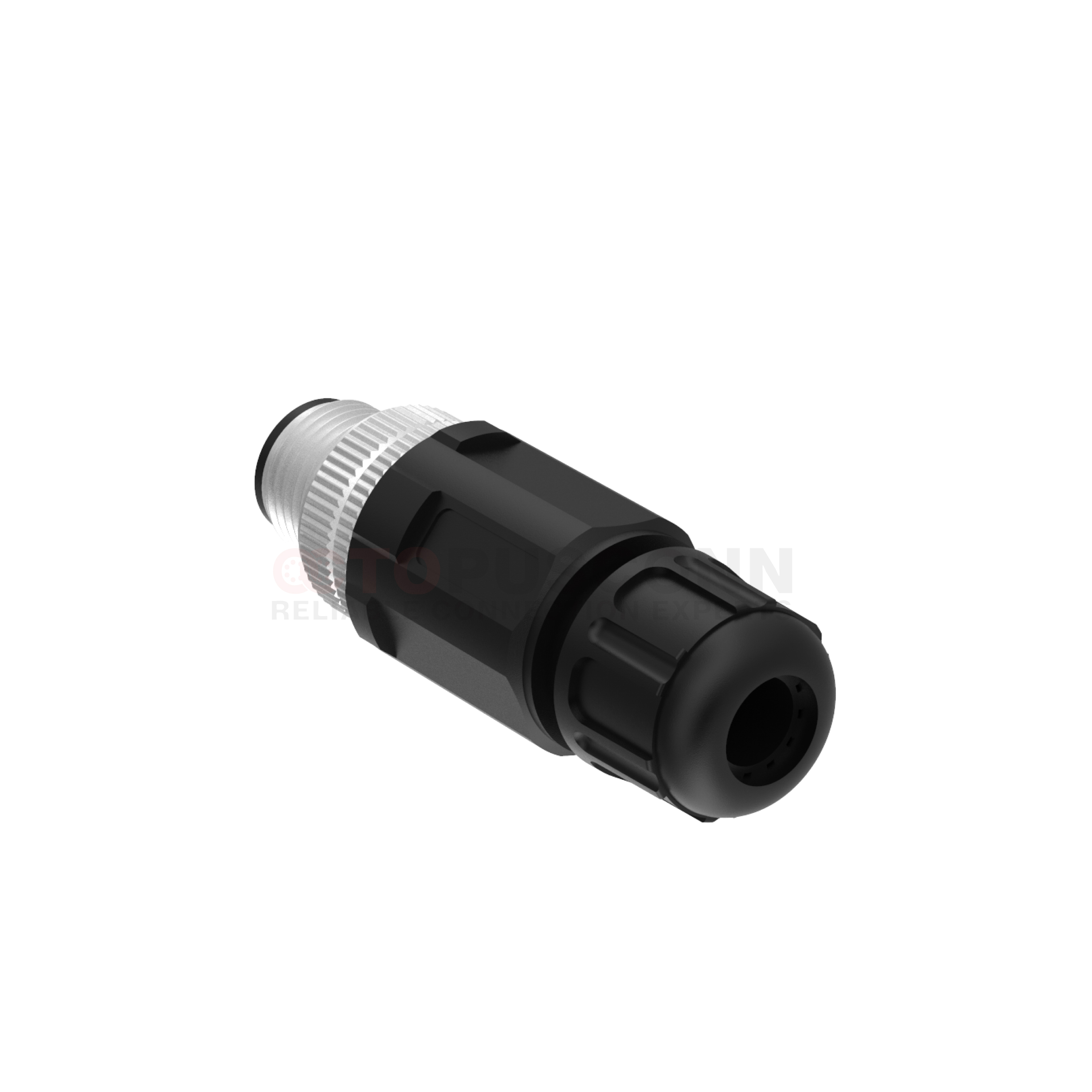

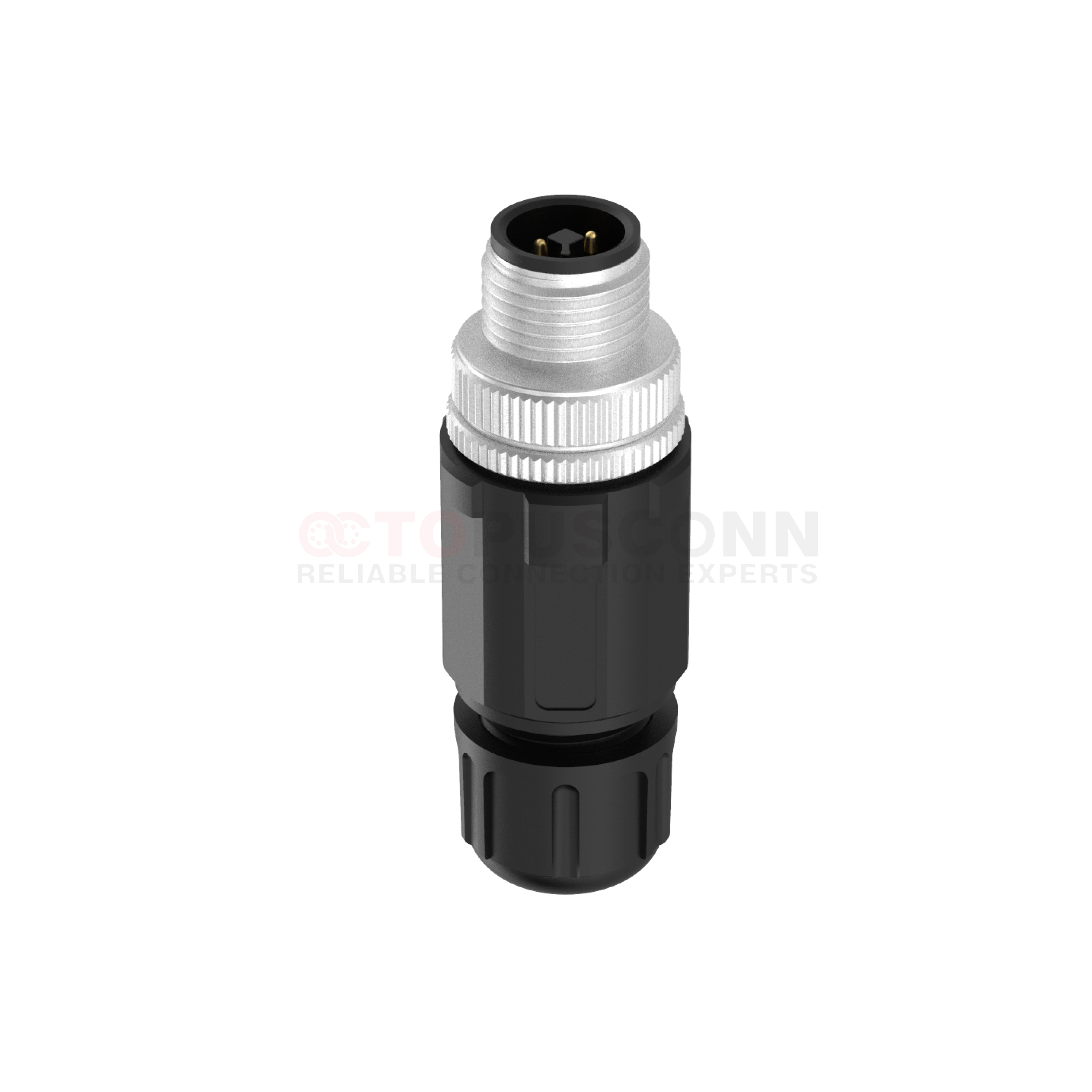

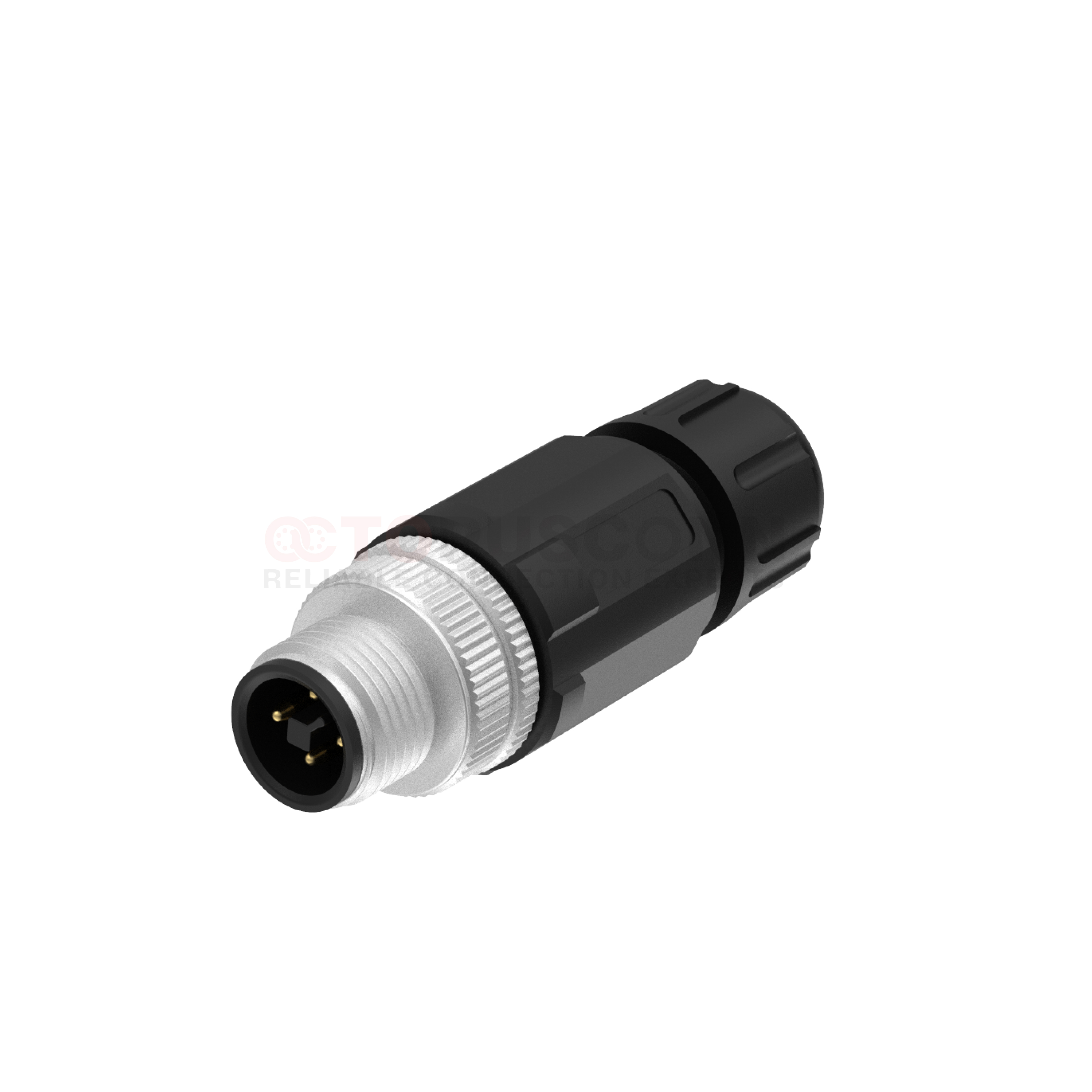

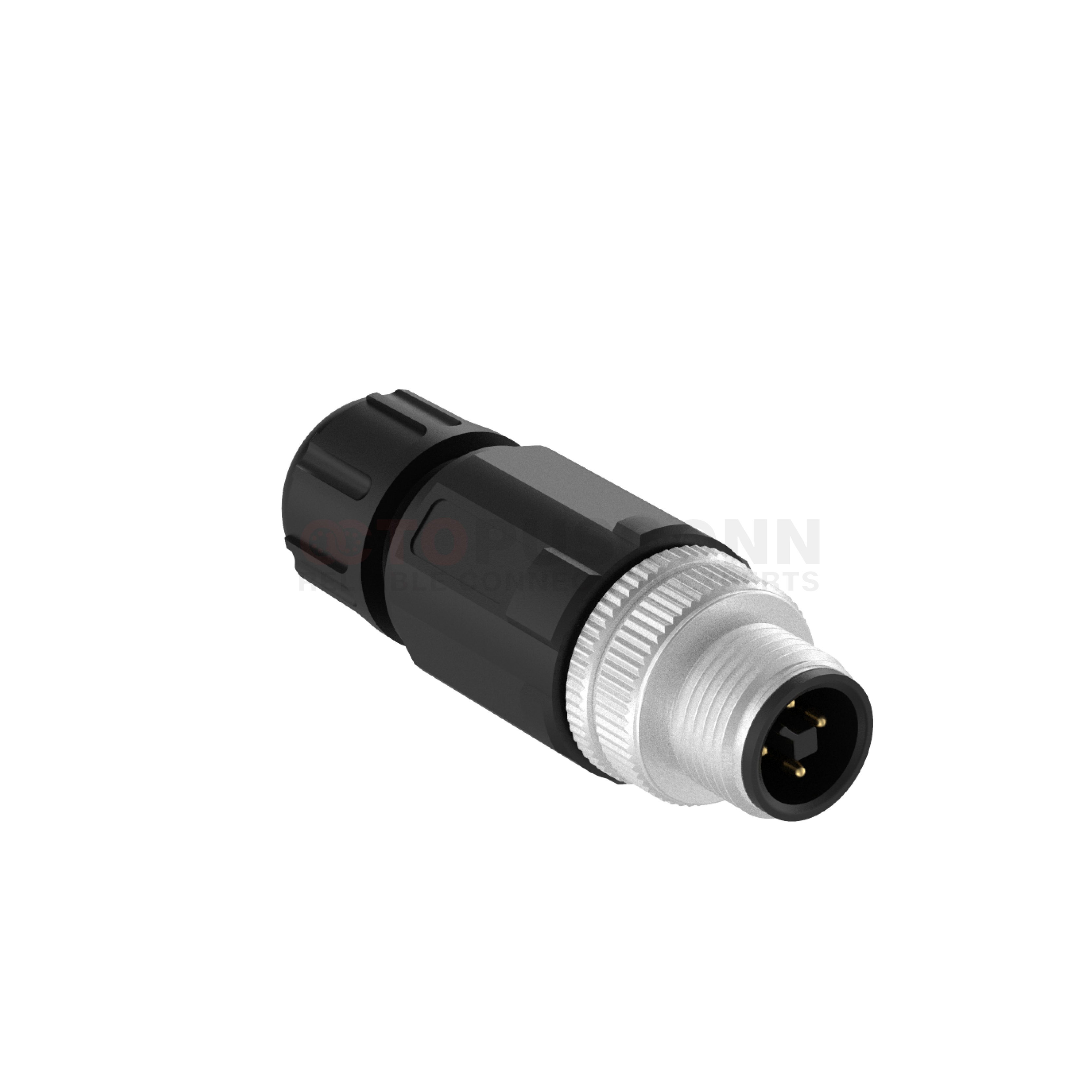

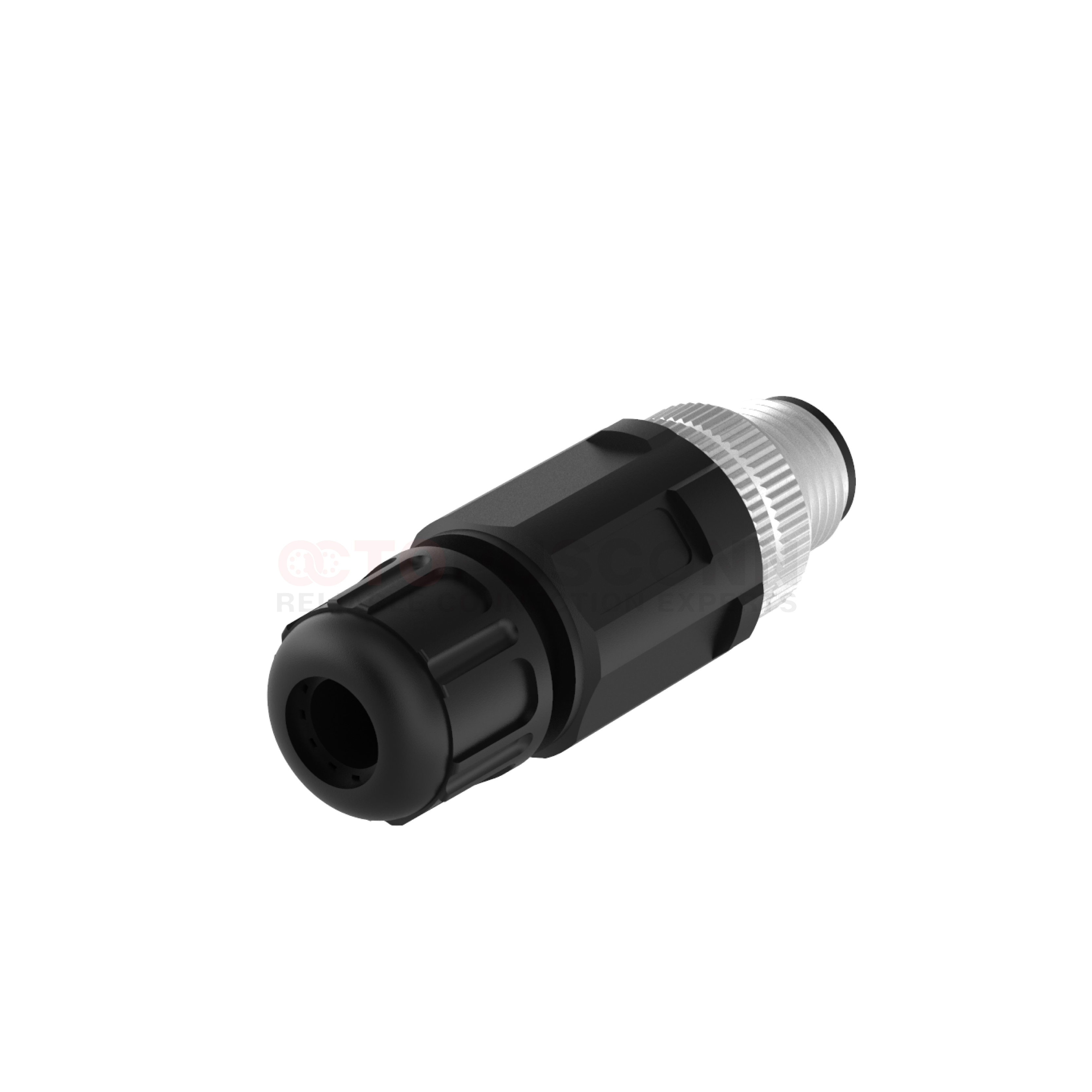

Vertical plastic assembly wire bonding type:
Anti-misinsertion and power-specific compatibility: The T code is a dedicated code for DC power transmission. The key position design is completely distinct from codes such as S (AC), A (signal), etc., which can avoid equipment short circuits or damage caused by misinsertion, precisely matching industrial DC power supply scenarios (such as sensor, small driver power supply). Lightweight and flexible wiring: The plastic body is 40% lighter than the metal shell, suitable for installation in equipment with sensitive load (such as lightweight robotic arms); the vertical structure is compatible with straight-line wiring, reducing cable bending stress, and the wire bonding design supports flexible cutting of cable lengths on-site, adapting to the wiring distance requirements of different devices.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12TM-02N1LSMNS601 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12TM-03N1LSMNS601 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12TM-04N1LSMNS601 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
 |
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
