Core Count: 3P, 4P
Category:Female
Direction:180°
Applications: Power, Signal

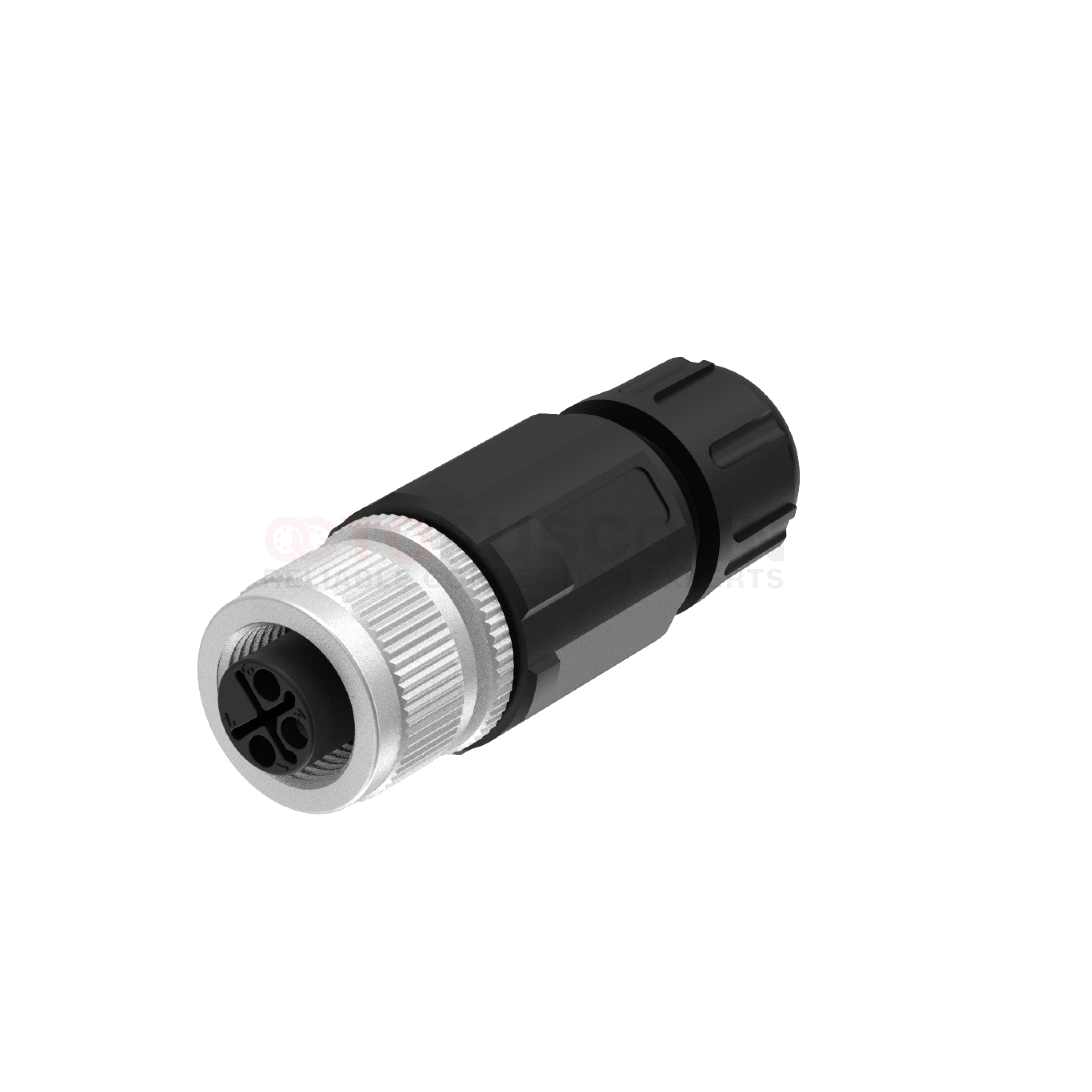

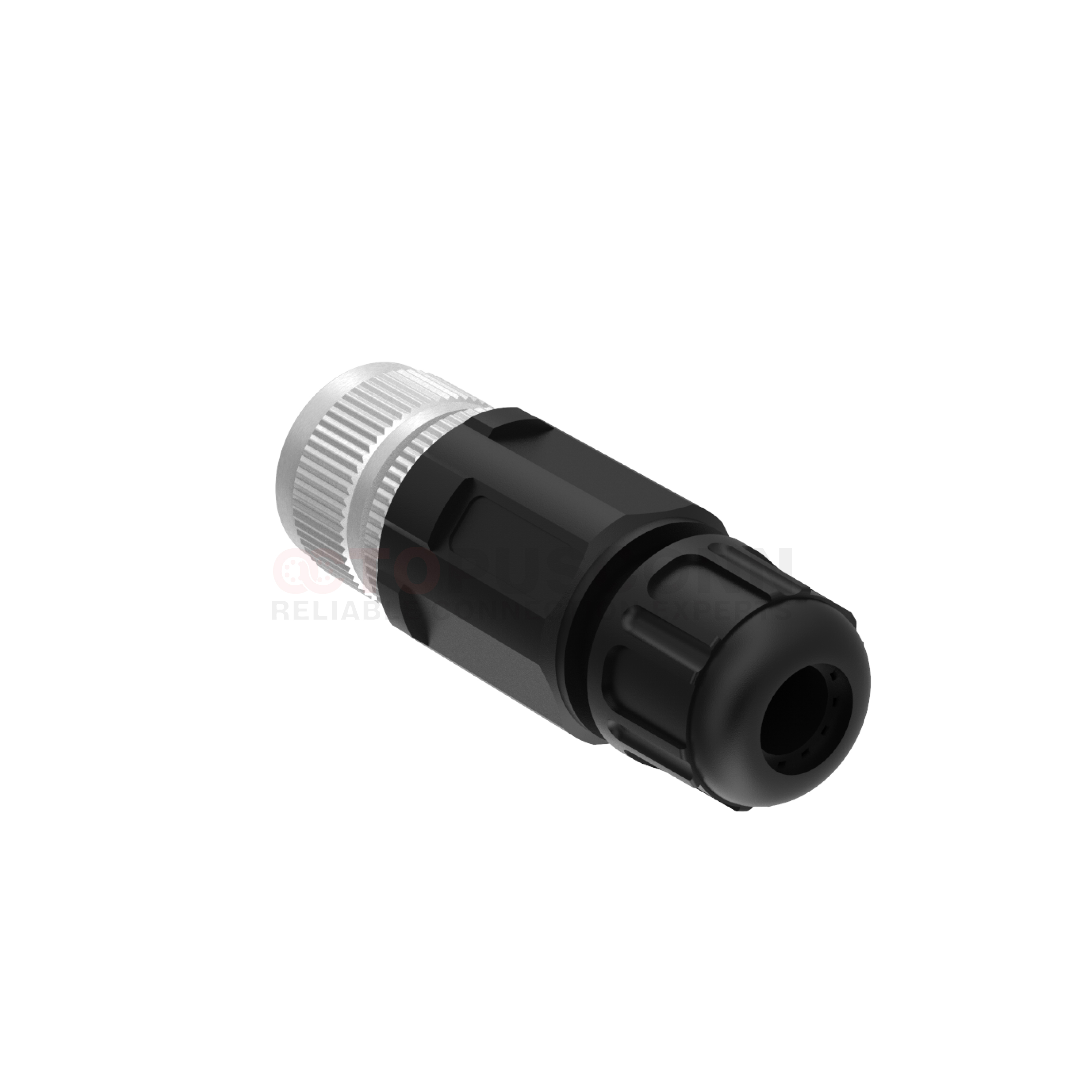

Straight-type plastic assembly wire bonding type:
Safe power supply and error-free insertion prevention: Continues the exclusive power supply feature of M12S coding. The core number configuration precisely matches the AC power supply requirements of industrial equipment. The exclusive coding can avoid incorrect connections with signal transmission type A, D, etc. coding connectors, preventing power short circuits. The gold-plated terminals are paired with silicone seals, which not only enhance the conductivity stability but also reduce oxidation and corrosion of the contacts in humid environments. Cost-effectiveness and protection in balance: The plastic material helps control production costs while combining threaded locking and silicone sealing structures to achieve IP67 and above protection levels. It can effectively resist erosion from dust, splashing, etc. in industrial scenarios, without the need for additional protective accessories, reducing the overall connection cost of the equipment. It is used for AC power connections in industrial fields, such as the power supply lines for servo motors and drivers in automated production lines. With the straight structure, it can adapt to the compact installation space of the equipment.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12SF-03N1LSMNS601 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12SF-04N1LSMNS601 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
 |
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
