Core Count: 3P, 4P
Category:Male
Direction:90°
Applications: Power, Signal

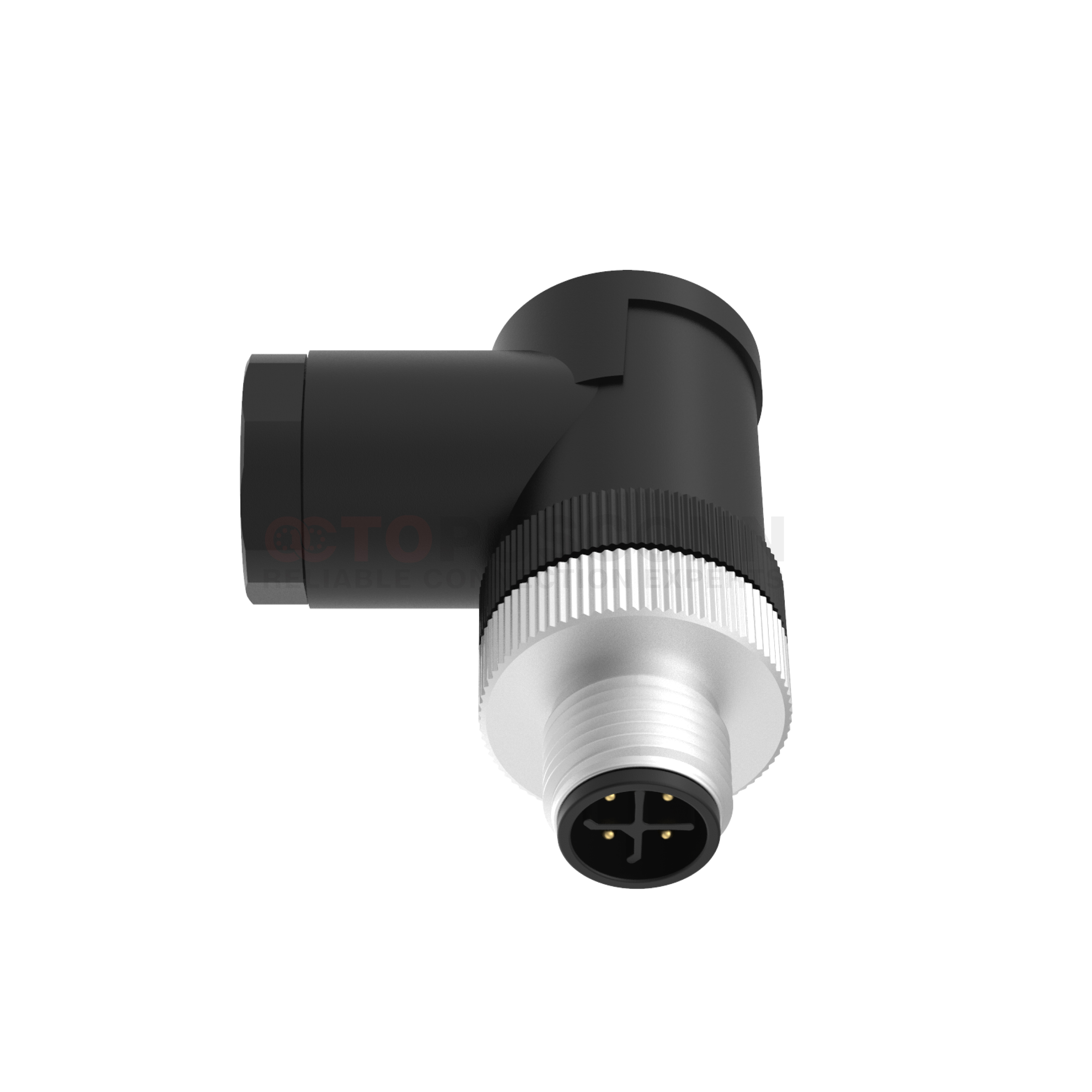

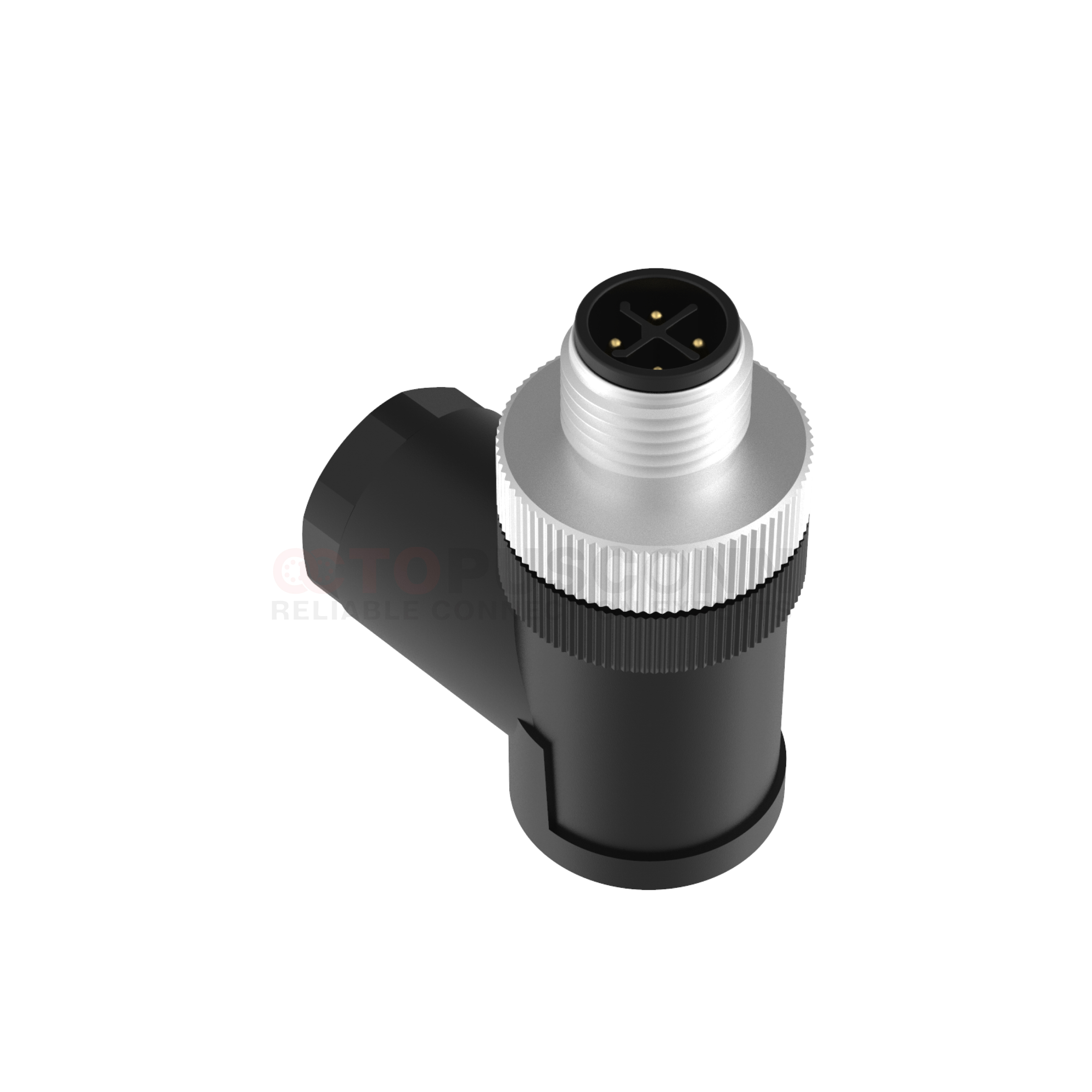

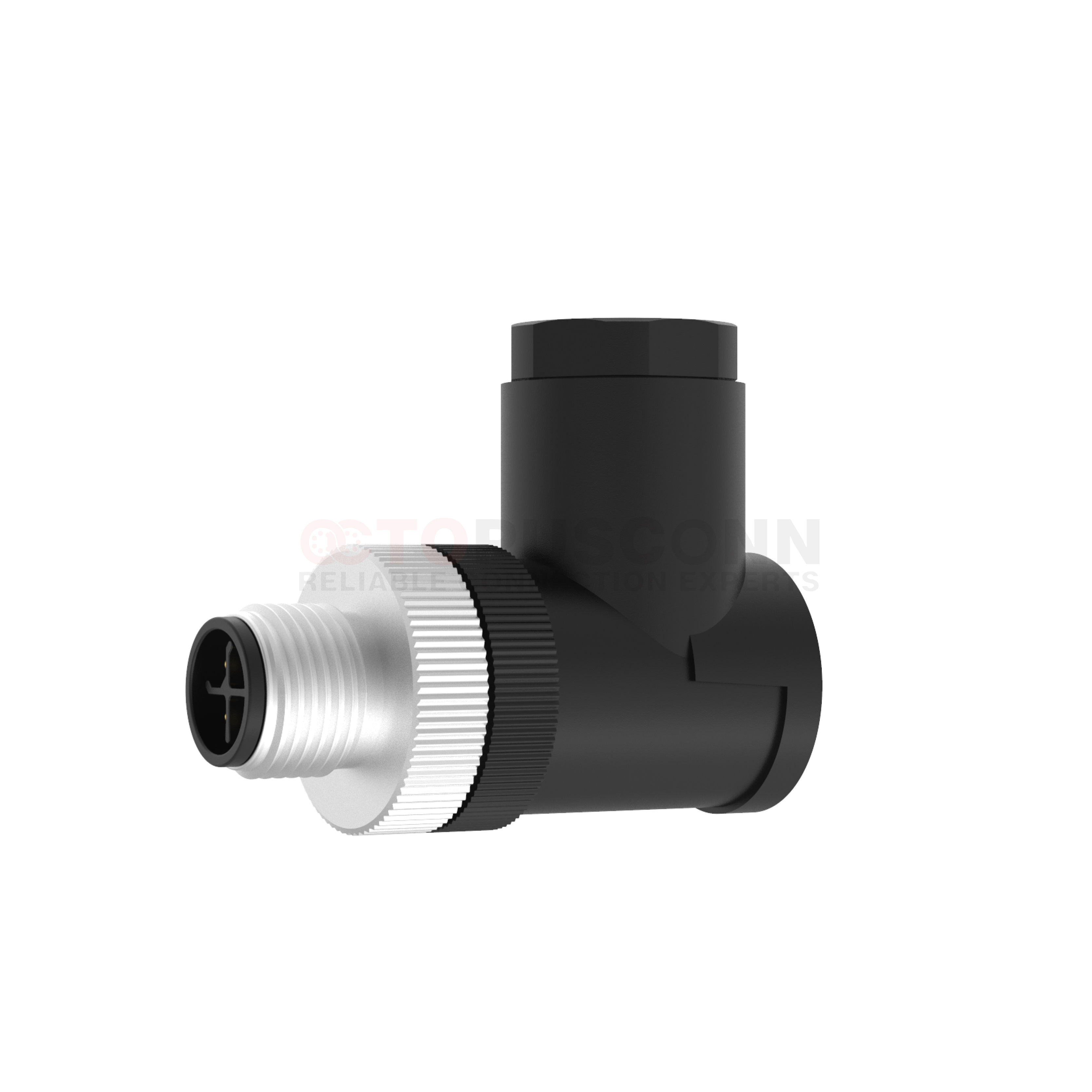

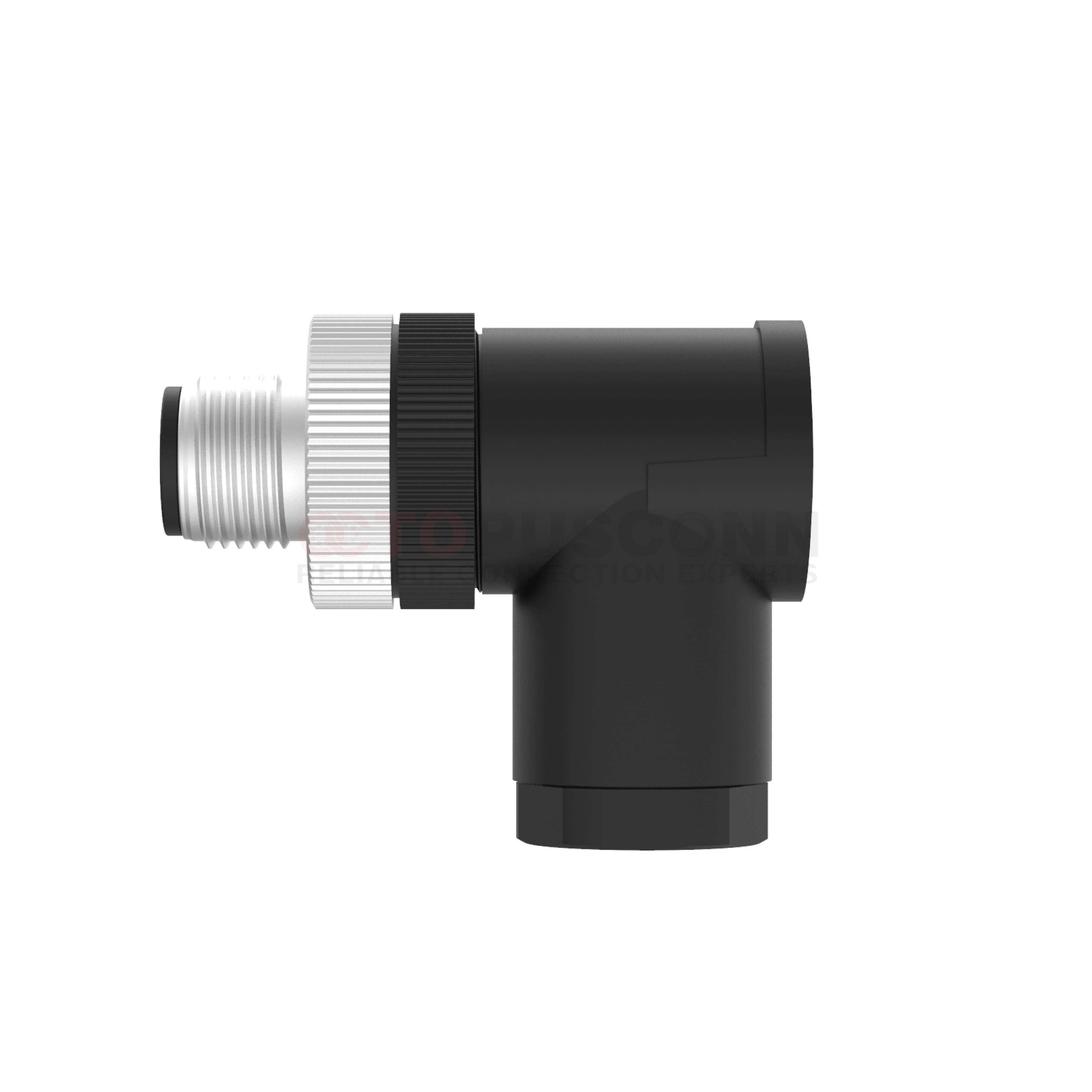

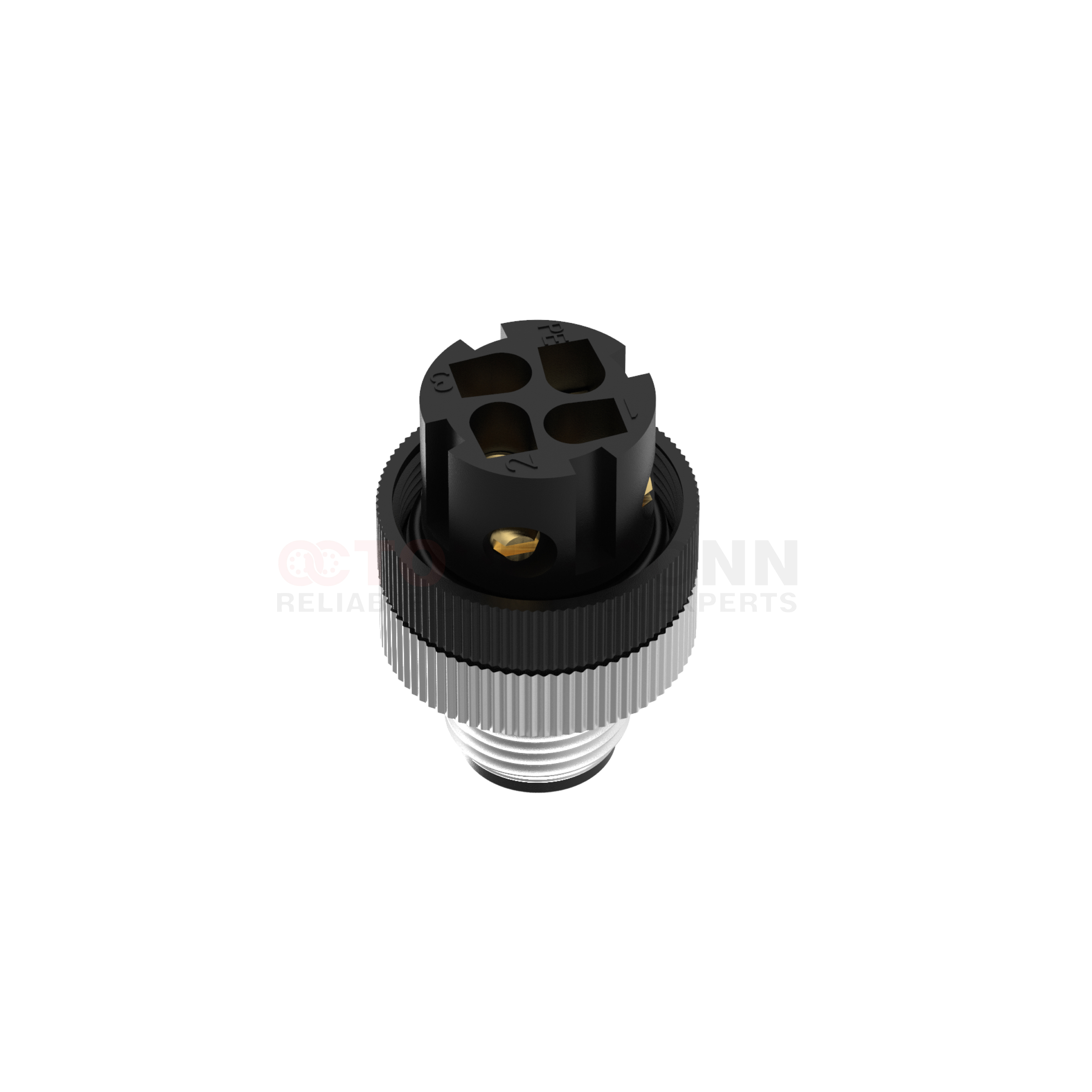

90° curved plastic assembly screw type:
Suitable for narrow spaces, protecting cables: The 90° curved design can fit into compact areas such as the corners of equipment and joints of mechanical arms for installation. It avoids damage to the insulation layer of the straight connector cables due to forced bending; at the same time, it makes the wiring more orderly, reduces cable entanglement, and is suitable for industrial equipment with high-frequency movement scenarios. Assembly and maintenance are convenient, with a high fault tolerance rate: The screw assembly type supports on-site modular combination. If there is a mistake in cable crimping or poor contact of terminals, there is no need to replace the entire connector; simply unscrew the screws and adjust or replace the terminals.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12SM-03WFFLLR301 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12SM-04WFFLLR301 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
 |
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
