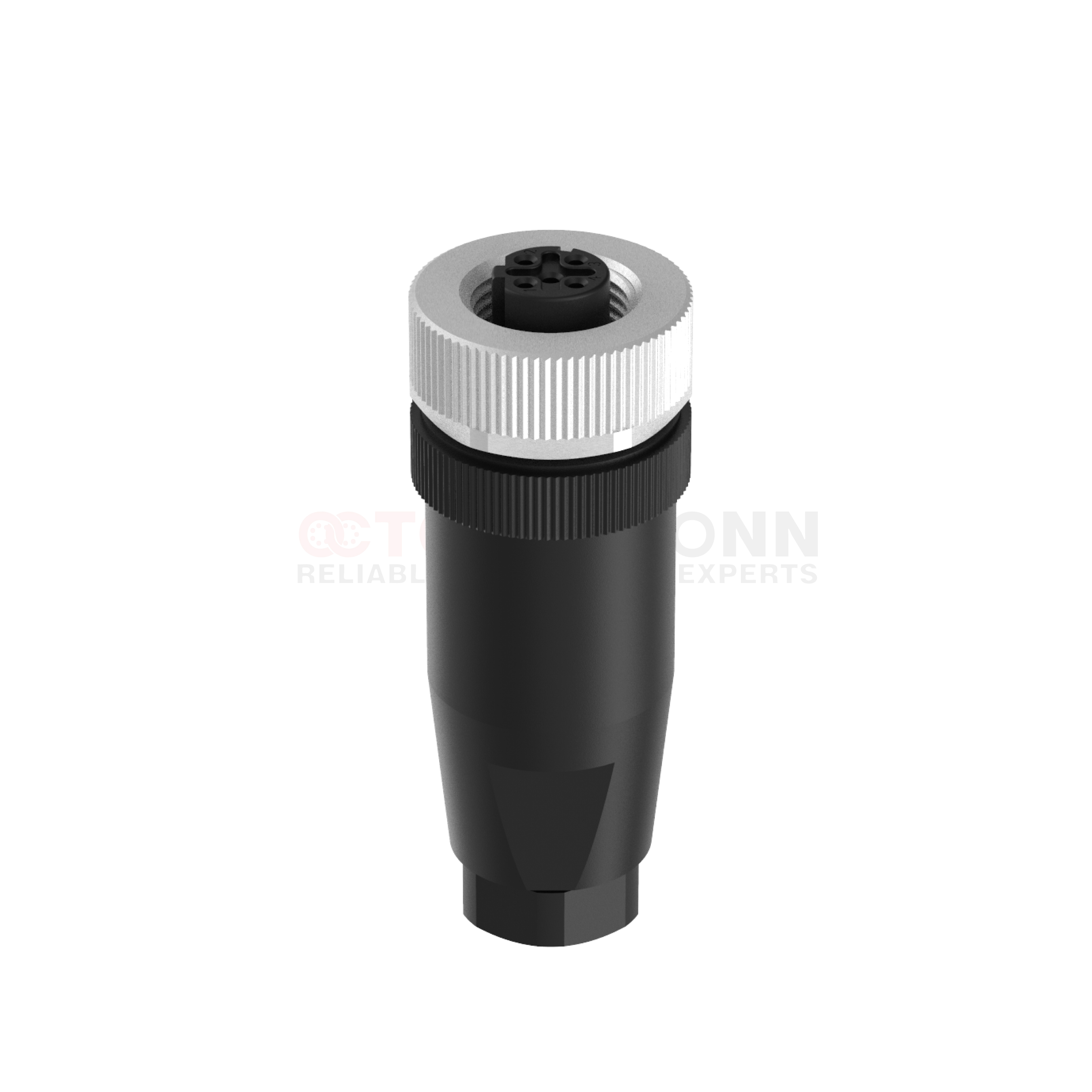

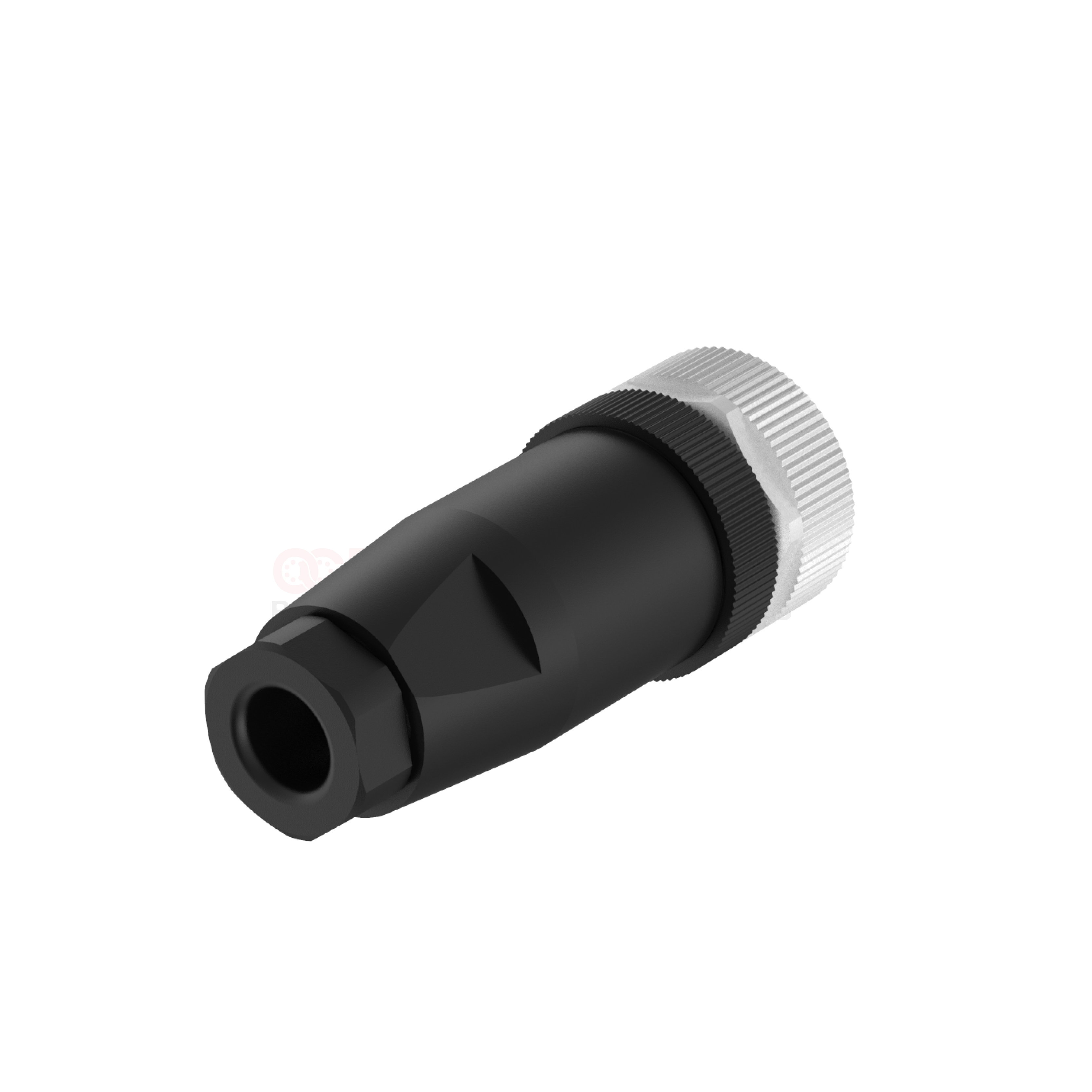

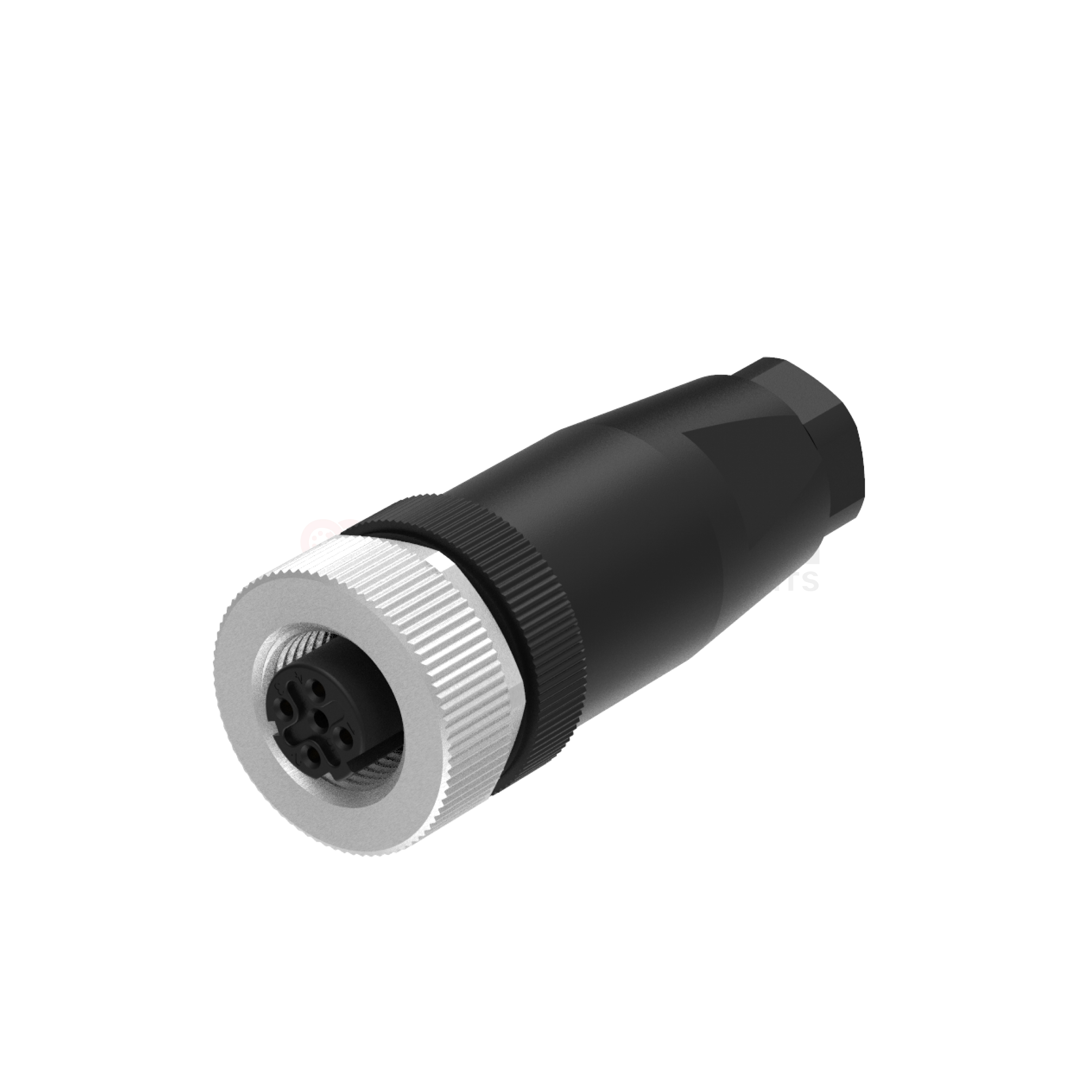

M12 D Coded Connectors Straight Plastic Assembled 4PIN Female Screw type PG7

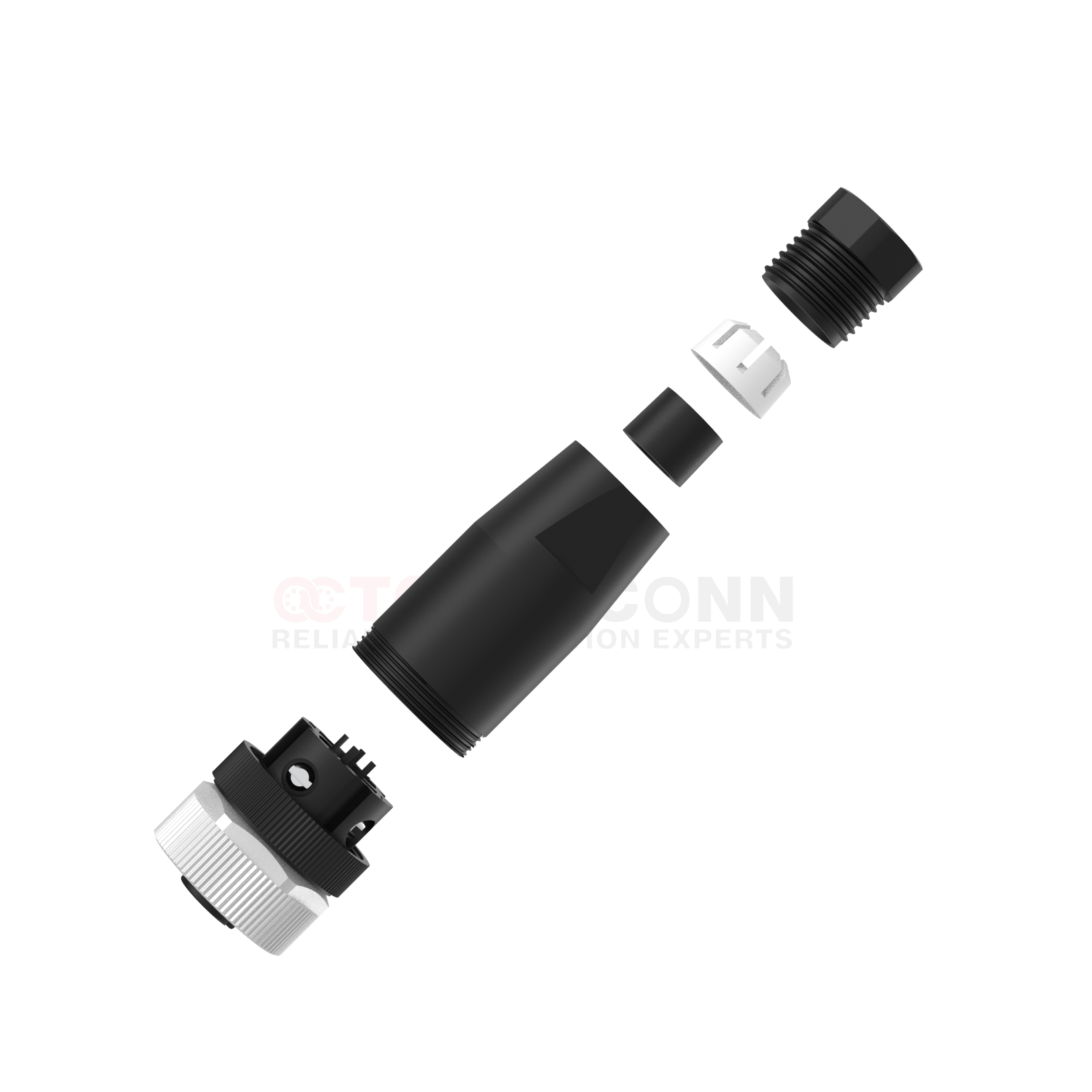

Straight 180° Metal Plastic Assembly Screw Type:
The straight 180-degree space adaptation feature adopts a 180-degree linear structure design. The connector axis is perfectly aligned with the PCB board and the cable direction, forming a coaxial transmission path. Compared to the curved type, it is more suitable for scenarios where pipelines are arranged in a straight line, such as vertical wiring inside control cabinets or positions reserved for straight installation on the back of equipment. This structure can minimize the bending stress of the cables and avoid insulation layer aging and damage caused by long-term bending. At the same time, it simplifies the wiring layout, facilitating later cable organization and maintenance. The precise D coding connection ensures that D coding serves as the core functional identifier, enabling physical error prevention between D, A, B, X, etc., and other M12 connectors. This fundamentally eliminates faults such as equipment short circuits and communication interruptions caused by incorrect connections. It is widely used in: Straight connections between PCB boards and sensors, actuators in industrial control cabinets to simplify wiring inside the cabinet; Signal interfaces for fixed equipment in automated production lines (such as motor control modules for conveyor belts), with the straight structure adapting to the installation space on the back of the equipment;
