Core Count: 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P, 17P
Category: Male
Direction: 180°
Applications: Power, Signal
Vertical rubber molding type:

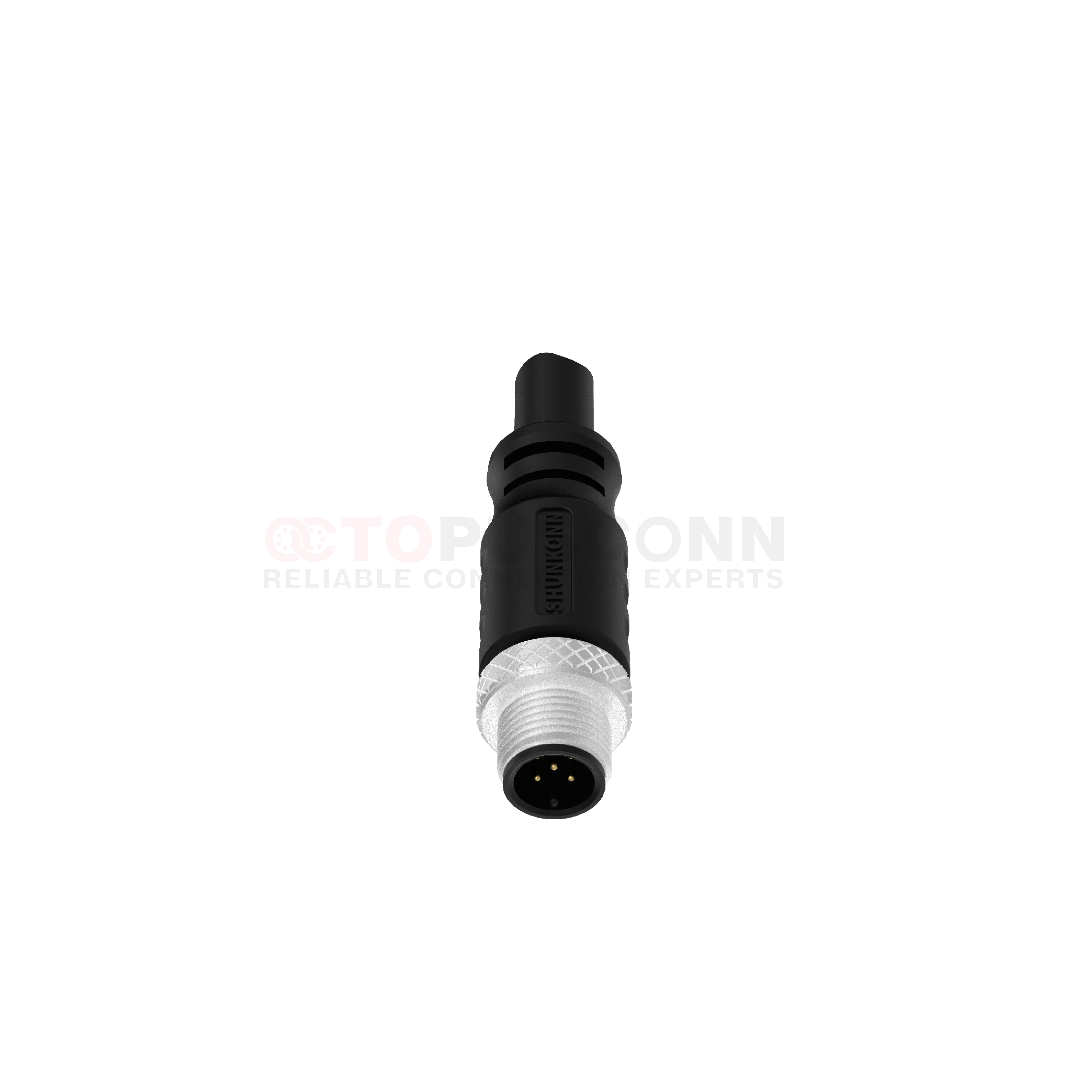

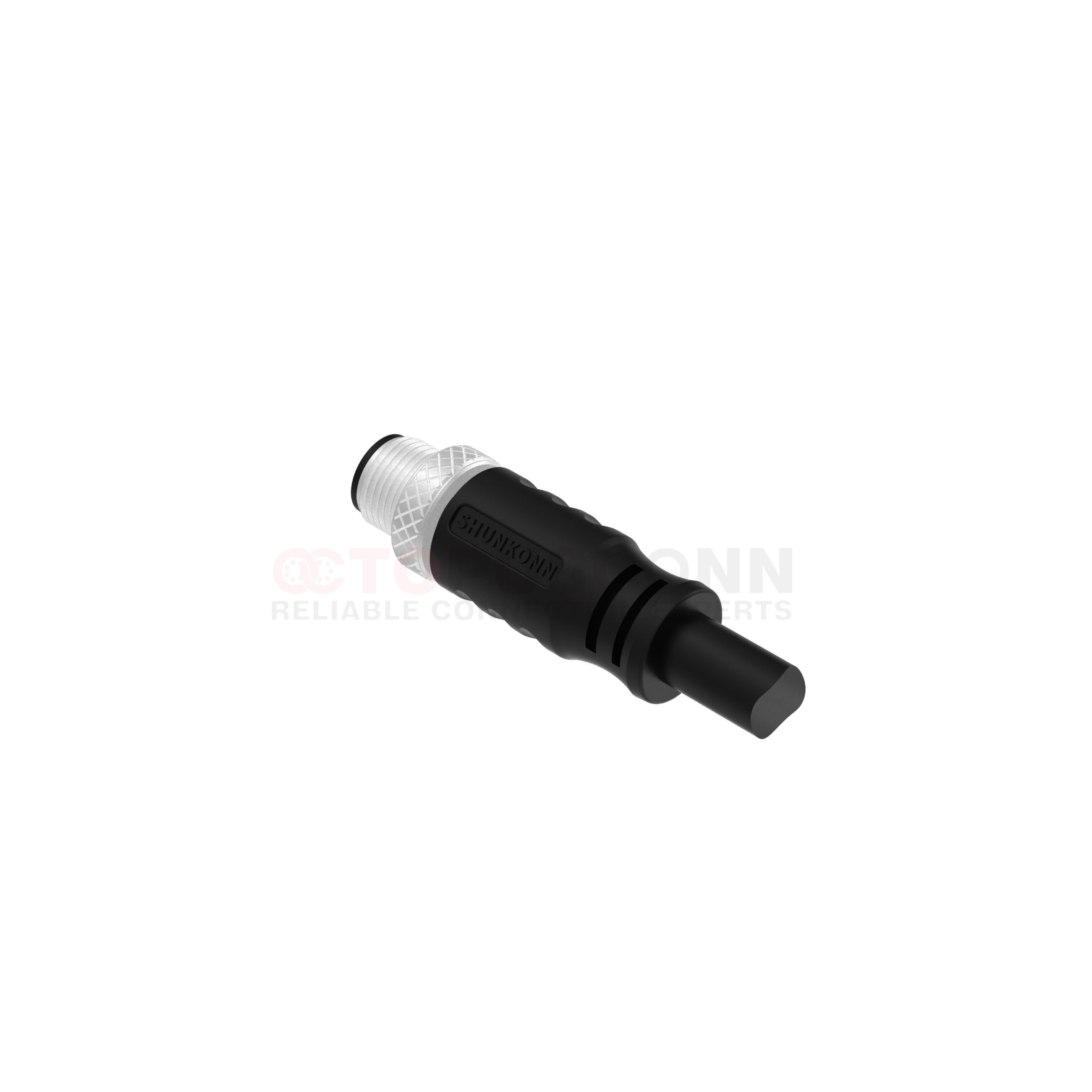

A coding anti-gimmick design: In accordance with relevant IEC standards, through a specific A-shaped concave-convex groove anti-gimmick structure, it can precisely distinguish other coding types such as B, D, X, etc. It can avoid equipment failures or abnormal signal transmission caused by incorrect insertion in industrial scenarios. The selection of pin numbers is rich, covering 2 - 17 cores. Different core numbers are compatible with different power and signal requirements. IP67 protection level: In the plugged state, the protection level can reach IP67, which can resist dust, splashing, and even high-pressure rinsing; the working temperature range is generally -40°C - 85°C, capable of coping with harsh environments such as industrial high and low temperatures, humidity, and oil stains. It is widely used in assembly lines, robotic arms, conveyor belts and other equipment, responsible for transmitting control signals and power, such as position sensors of packaging conveyors and signal connections of control cabinets.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12AM-025222ABSEP100B01 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-035222ABSEP100B01 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-045222ABSEP100B01 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AM-055222ABSEP100B01 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| MC12AM-065222ABSEP100B01 |
6
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AM-085222ABSEP100B01 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AM-125222ABSEP100B01 |
12
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| MC12AM-175222ABSEP100B01 |
17
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
 |
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
