Core Count: 3P, 4P, 5P
Category: Male end
Installation Method: Welding wire type
Applications: Power, Signal

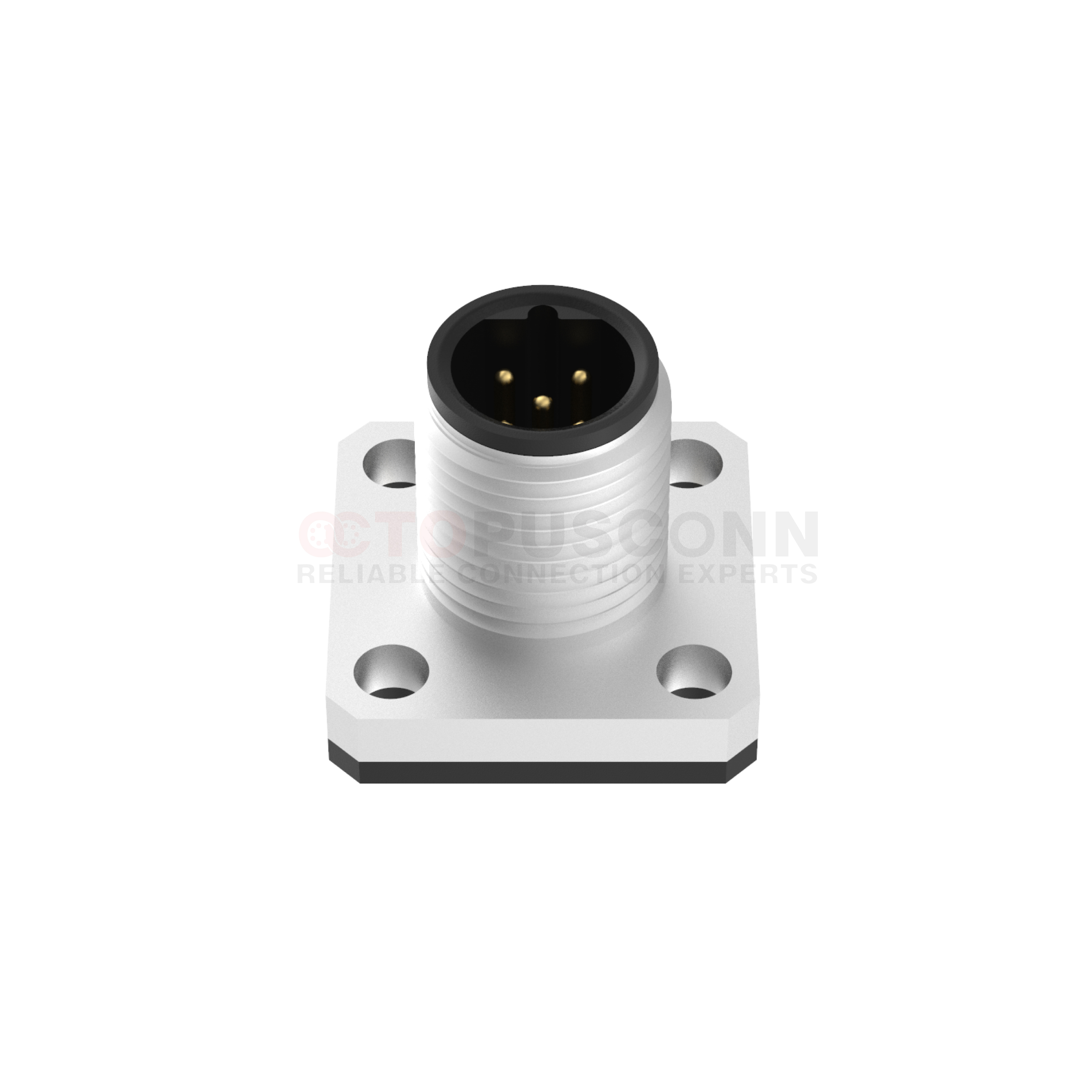

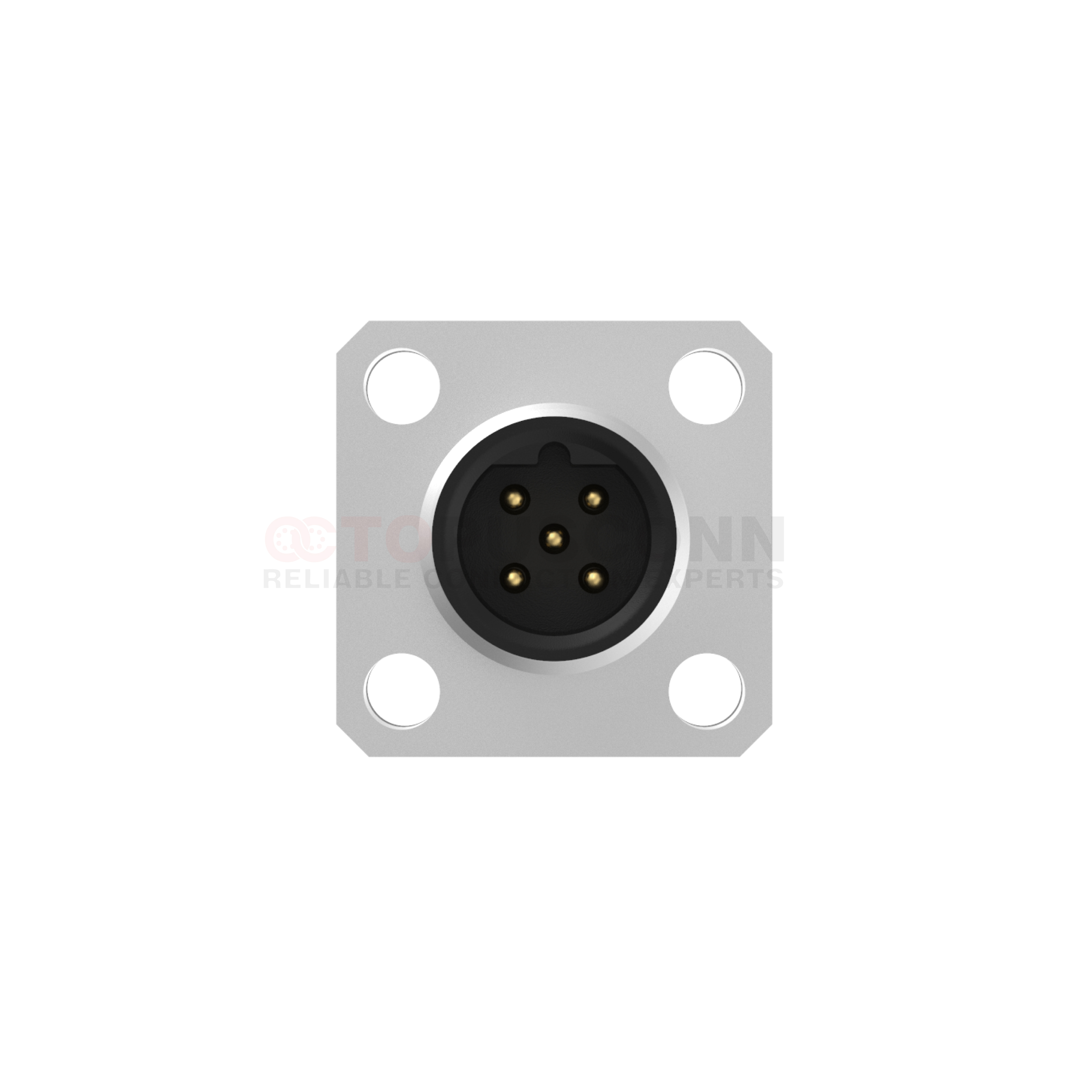

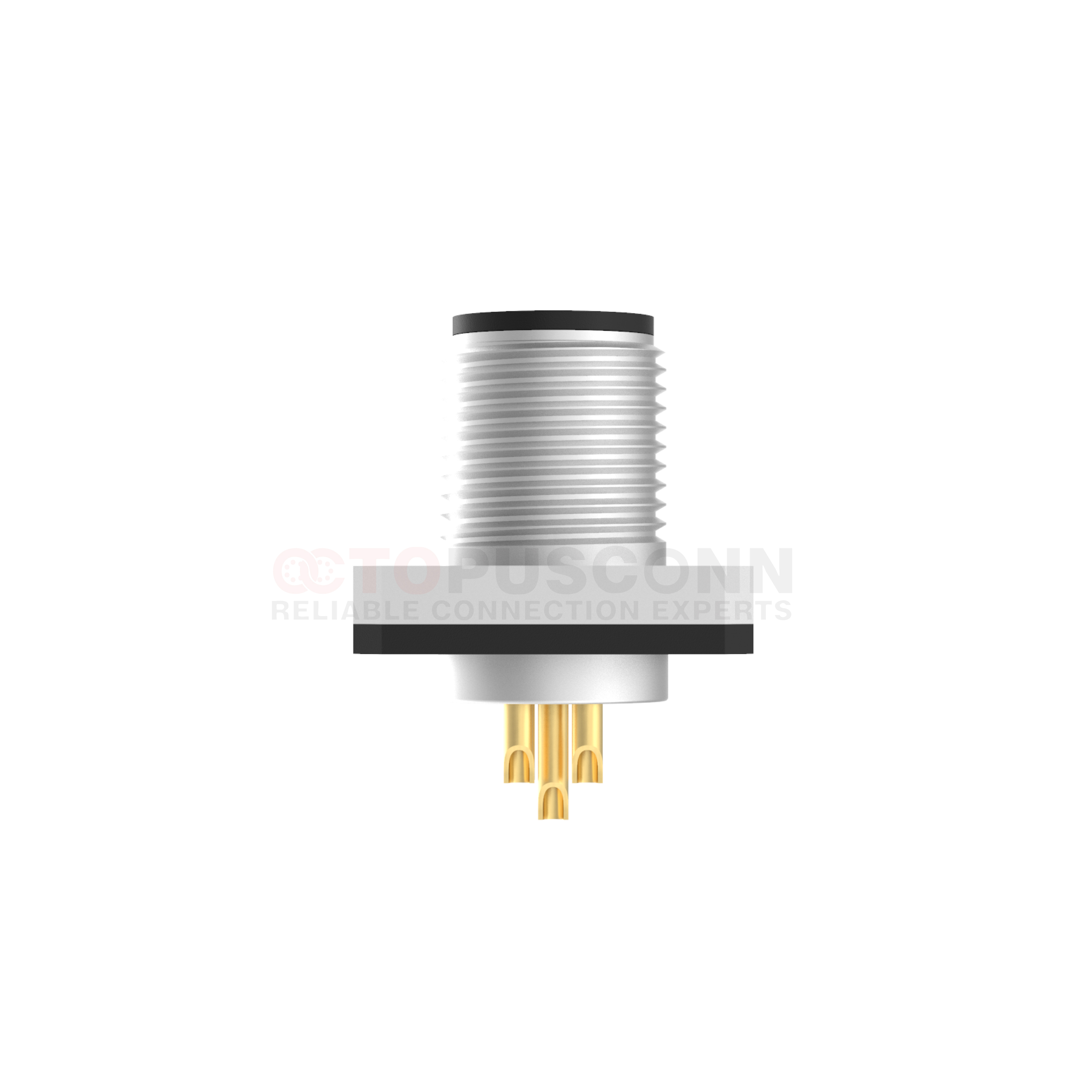

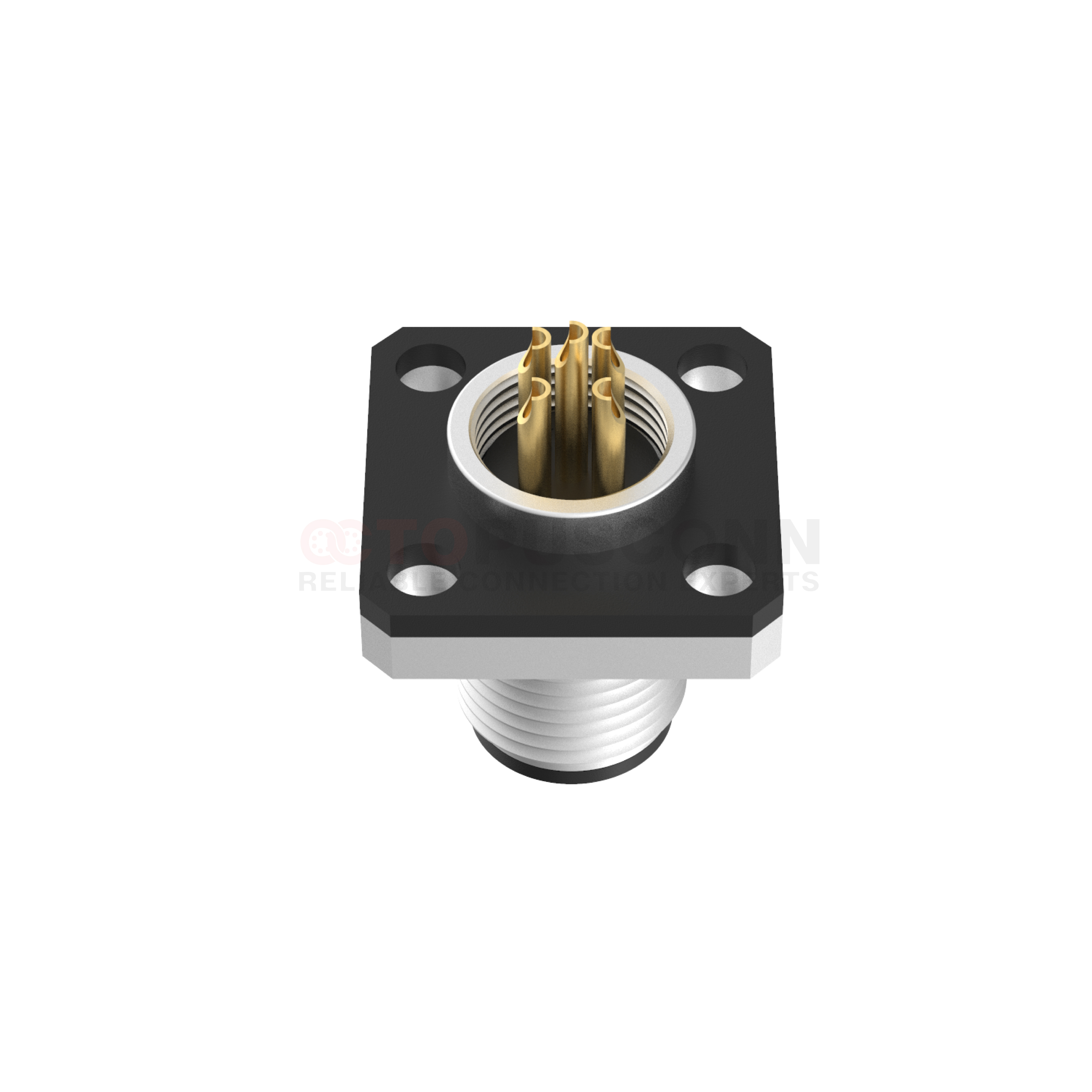

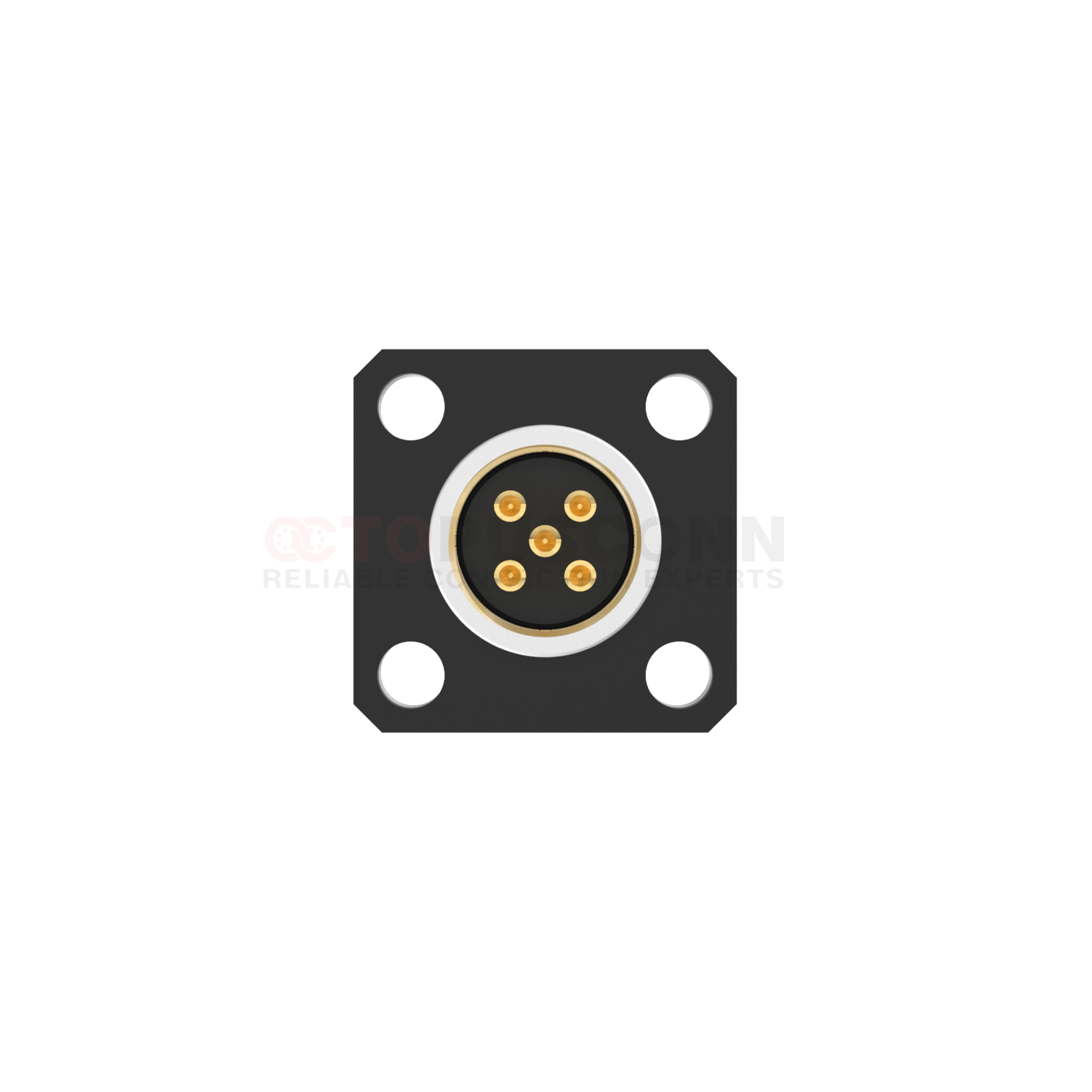

Square Flange:
Structural Characteristics: It adopts a square flange base design, using the installation holes at the four corners to fix the panel, matching the standard panel opening dimensions. Compared to circular flanges, it provides more precise positioning and effectively avoids rotation offset after installation. Installation Advantages: Supports two panel installation methods - front-mounted and rear-mounted, suitable for different internal layouts of equipment; The flange and the panel are closely attached, and together with the silicone sealing ring, form multiple seals, directly enhancing the overall protection performance to IP67 scenarios. Adaptation: Especially suitable for industrial control cabinets, instrument boxes, etc., in compact spaces. In high wiring density environments, it can be precisely arranged to reduce installation interference issues.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BM-03L7LSLNS101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-04L7LSLNS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-05L7LSLNS101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
 |
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
