The Octopusconn M12 connector is centered around a 12mm standardized thread design, adhering to the IEC 61076 series international standards and RoHS, CE certifications. It integrates A/B/D/K/S/T/X full-scenario coding and is specifically designed for stable connection hubs in industrial harsh environments. The product features a PA9T reinforced housing, gold-plated copper contacts, and PVC high-temperature resistant insulation layer. It has an IP67/IP68 high protection level, capable of withstanding a wide temperature range of -40°C to 85°C, resisting vibration, oil stains, salt fog and other harsh conditions. The contact resistance is ≤ 3mΩ, the plug-in and unplugging life exceeds 500 times, and under a 10G acceleration vibration, the locking force attenuation rate is ≤ 8%, ensuring long-term reliable operation.
The M12 connector is a core connection component in industrial scenarios. It is based on a standardized design with a diameter of 12 millimeters and features a threaded locking structure. It has an IP67 or higher protection level and can withstand a wide range of harsh conditions such as -40°C to 85°C temperature, vibration, and oil contamination.It supports flexible configuration of 2 to 17 cores. Through various encodings such as A/B/D/X, it can adapt to power supply, signal, and high-speed data transmission requirements. The shielded model can effectively resist electromagnetic interference, has low contact resistance and a long insertion and removal lifespan. It is widely used in industrial automation, robotics, rail transportation, food and pharmaceutical industries.

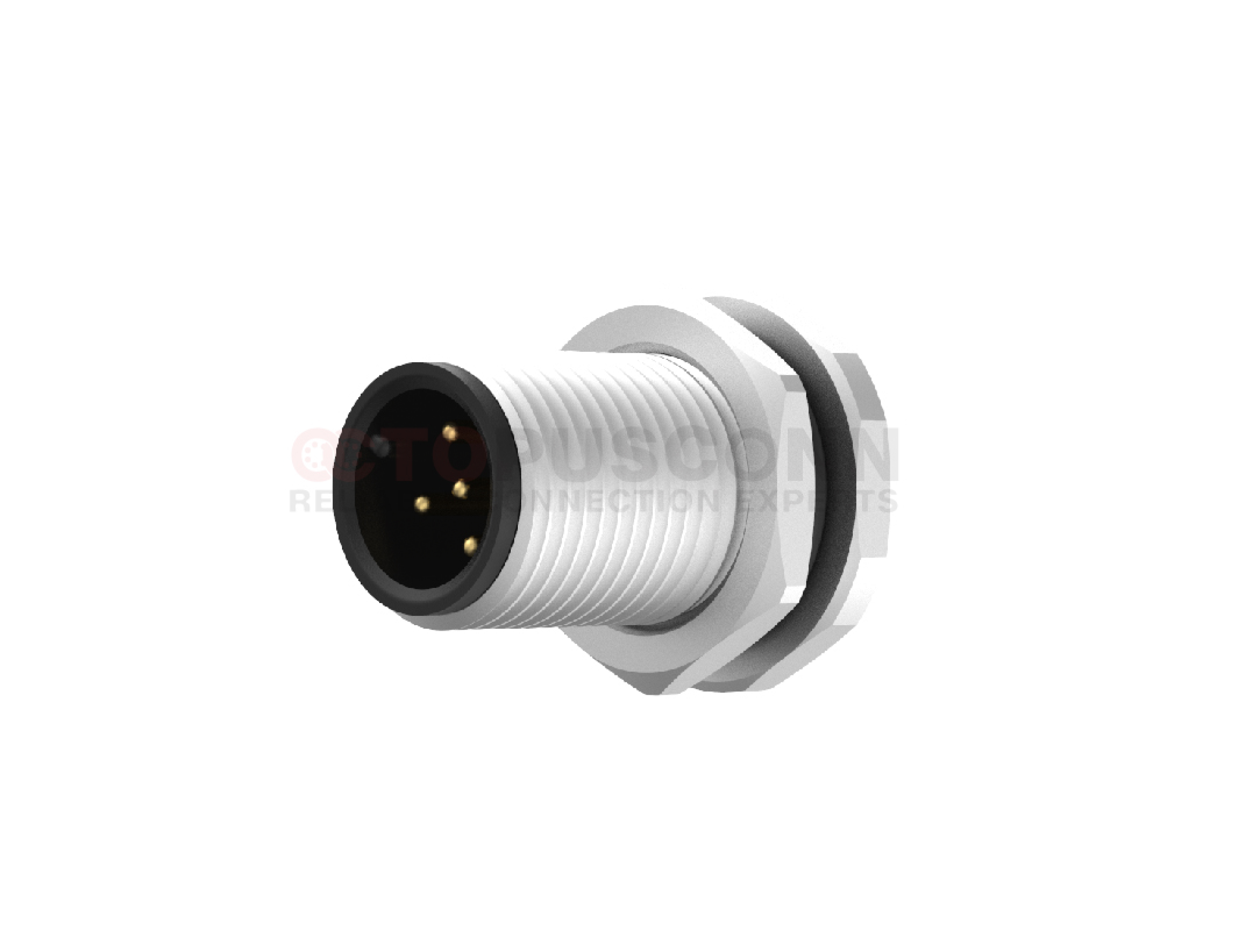

Universal low-frequency signal and low-voltage power solution, supporting 2-17 pin configuration, rated current 4A, suitable for basic signal and power transmission of sensors, actuators and IO-Link devices, widely used for basic signal acquisition around machine tools.

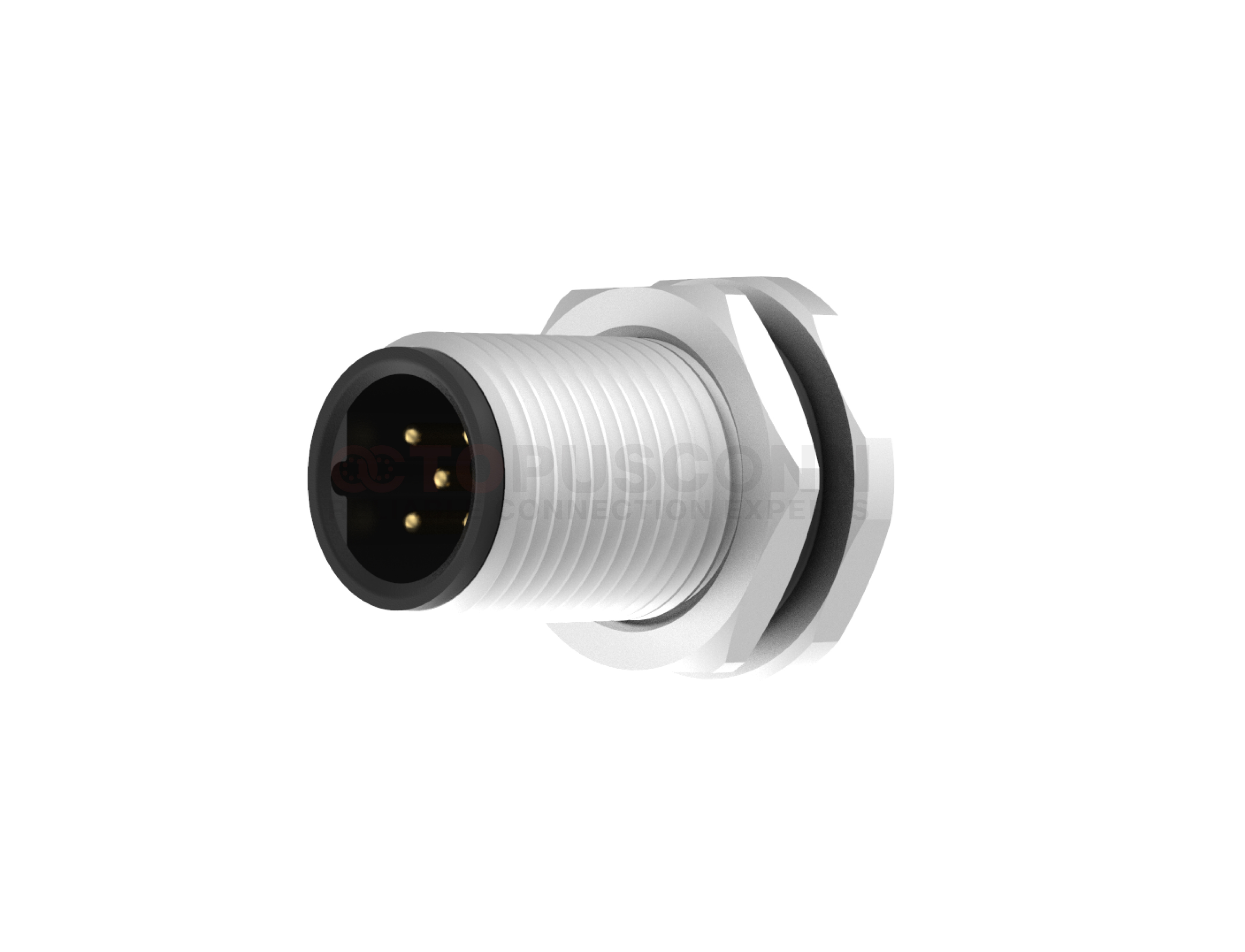

PROFIBUS bus dedicated model, with a 9-core configuration that meets the 150Ω characteristic impedance requirement, transmission rate ≤ 12Mbps, 360° shielded grounding design, specially designed for differential signal transmission between PLC and frequency converter in industrial bus networks.

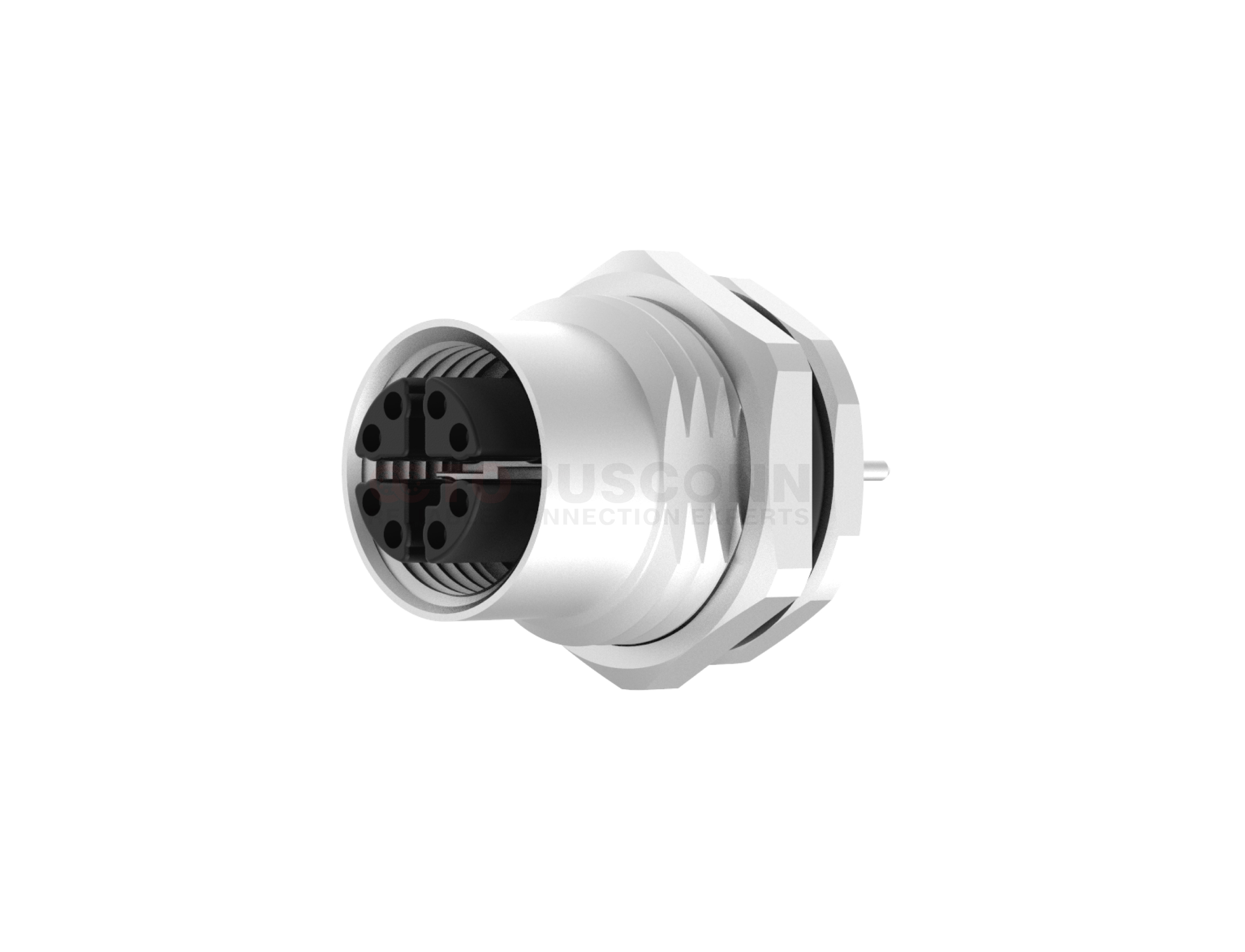

The main model of high-speed Ethernet, supporting 1000Mbps gigabit transmission, with an 8-core configuration compatible with Profinet and EtherNet/IP protocols. The copper wire woven shielding coverage rate is ≥ 85%, suitable for high-speed data transmission of machine vision cameras and robot controllers.

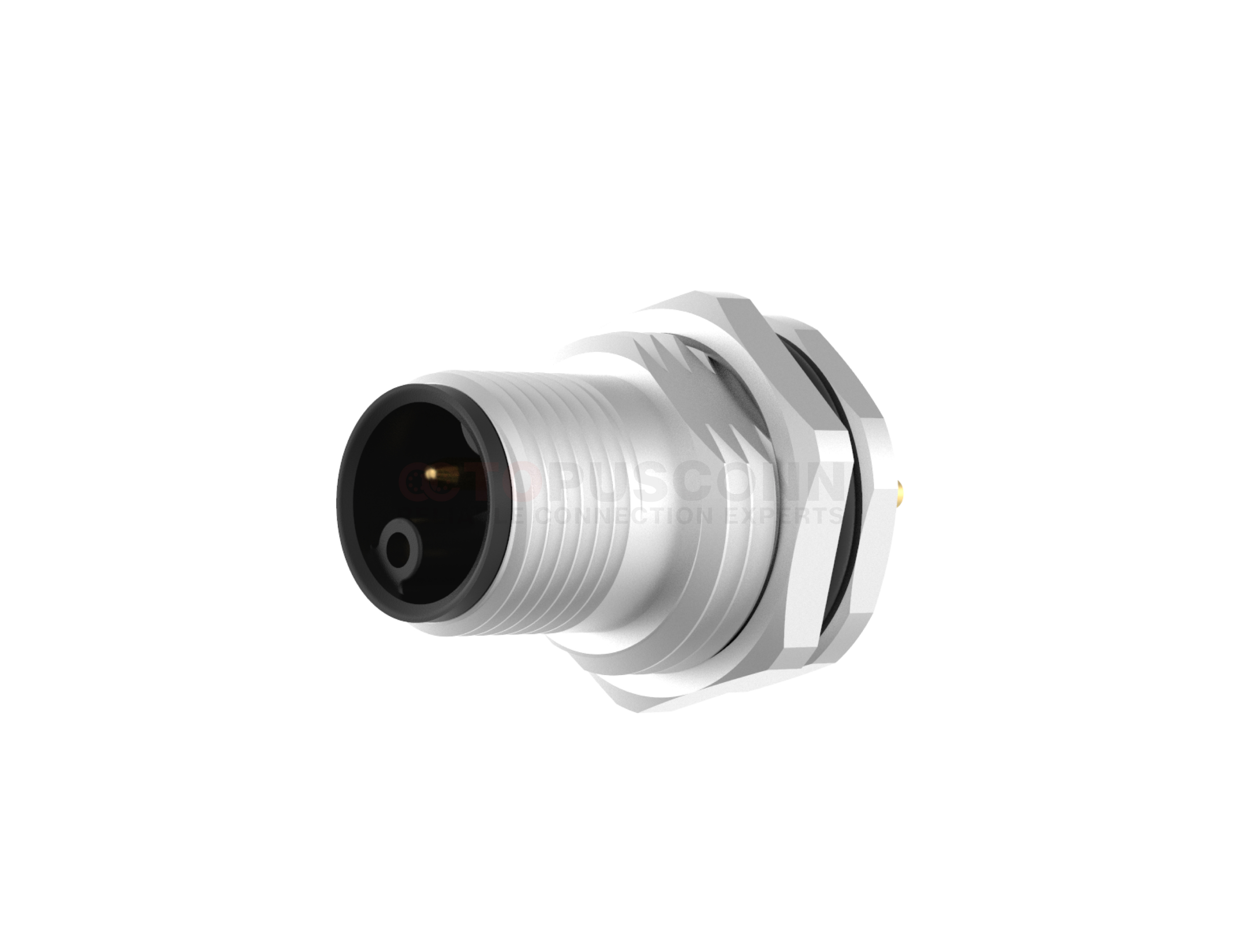

This is a dedicated power transmission device for small drives. It features a 4-pole + PE core design, with a rated current of 12A and a voltage of 630V. It achieves large power supply in a small size, meeting the large power connection requirements for drives under 7.5 kilowatts and industrial equipment.
Industrial safety signal guardian, 4-pin safety circuit design, compliant with ENISO13849 standard, insulation resistance ≥ 1000MΩ, specially designed for signal transmission of safety systems such as emergency stop buttons and safety door sensors, eliminating the risk of incorrect connections.

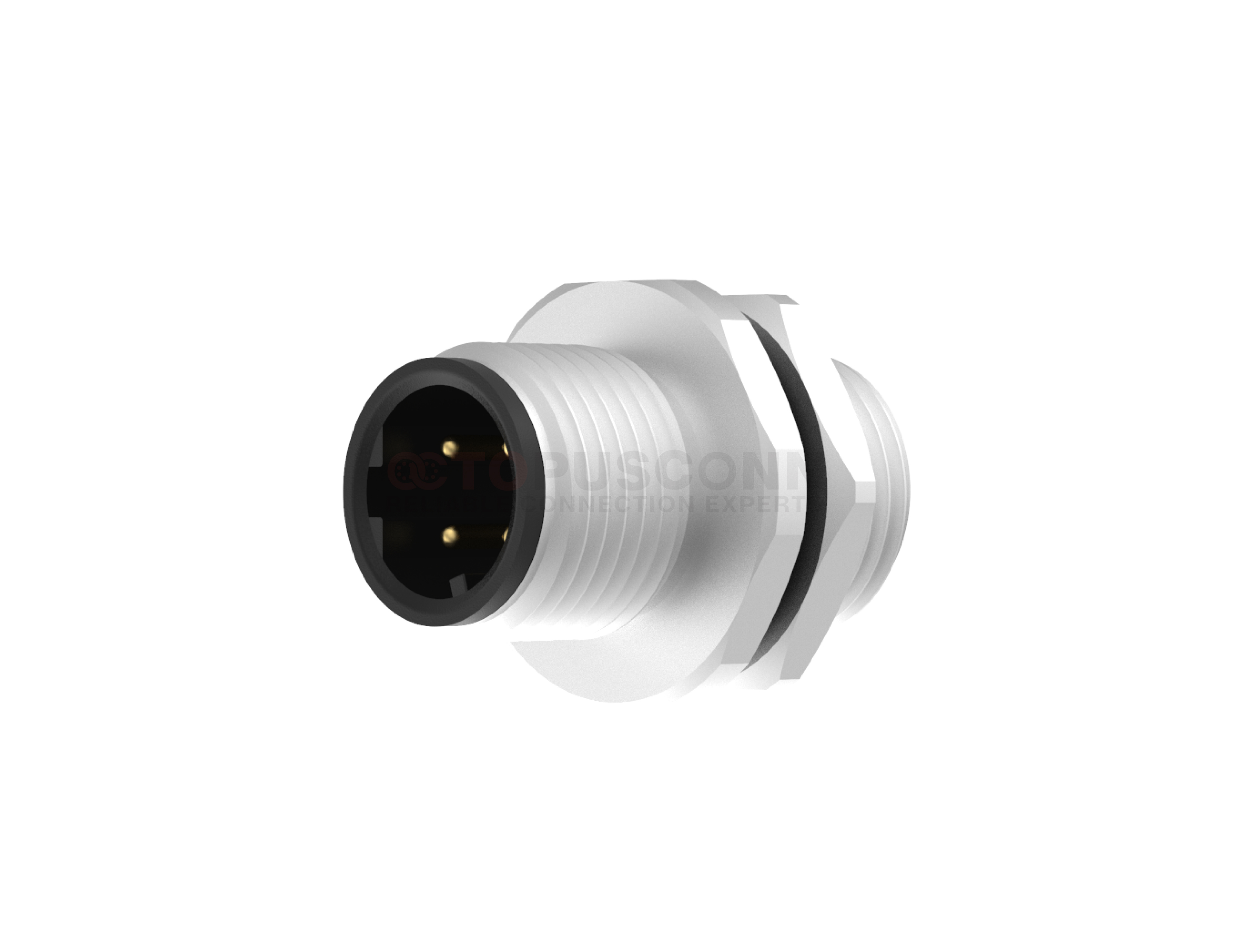

The EtherCAT bus high-efficiency model, with an 8-core dual-port design, supports "daisy chain" topology. The transmission delay is ≤ 1μs. It is suitable for synchronous drive of servo motors and high-precision motion control signal transmission of semiconductor equipment.
The pioneer of 10Gbps high-speed transmission, with an 8-core twisted shield structure, a metal casing that effectively resists electromagnetic interference, supporting high-speed transmission of industrial Ethernet, and suitable for large data transmission scenarios of 4K machine vision and industrial IoT gateways.
