In industrial automation, sensor signal transmission, and intelligent logistics, M8 and M9 connectors are two classic miniature circular connectors. With their compact design and high protection performance, they have become the mainstream choice for connections in narrow spaces. However, due to differences in equipment design and working condition requirements, many engineers and purchasers often face the dilemma of "choosing M8 or M9".

This article will explain the differences between M9 and M8 connectors from four core dimensions: size, parameters, protection, and application scenarios, and provide clear and actionable comparison and selection suggestions based on practical experience.

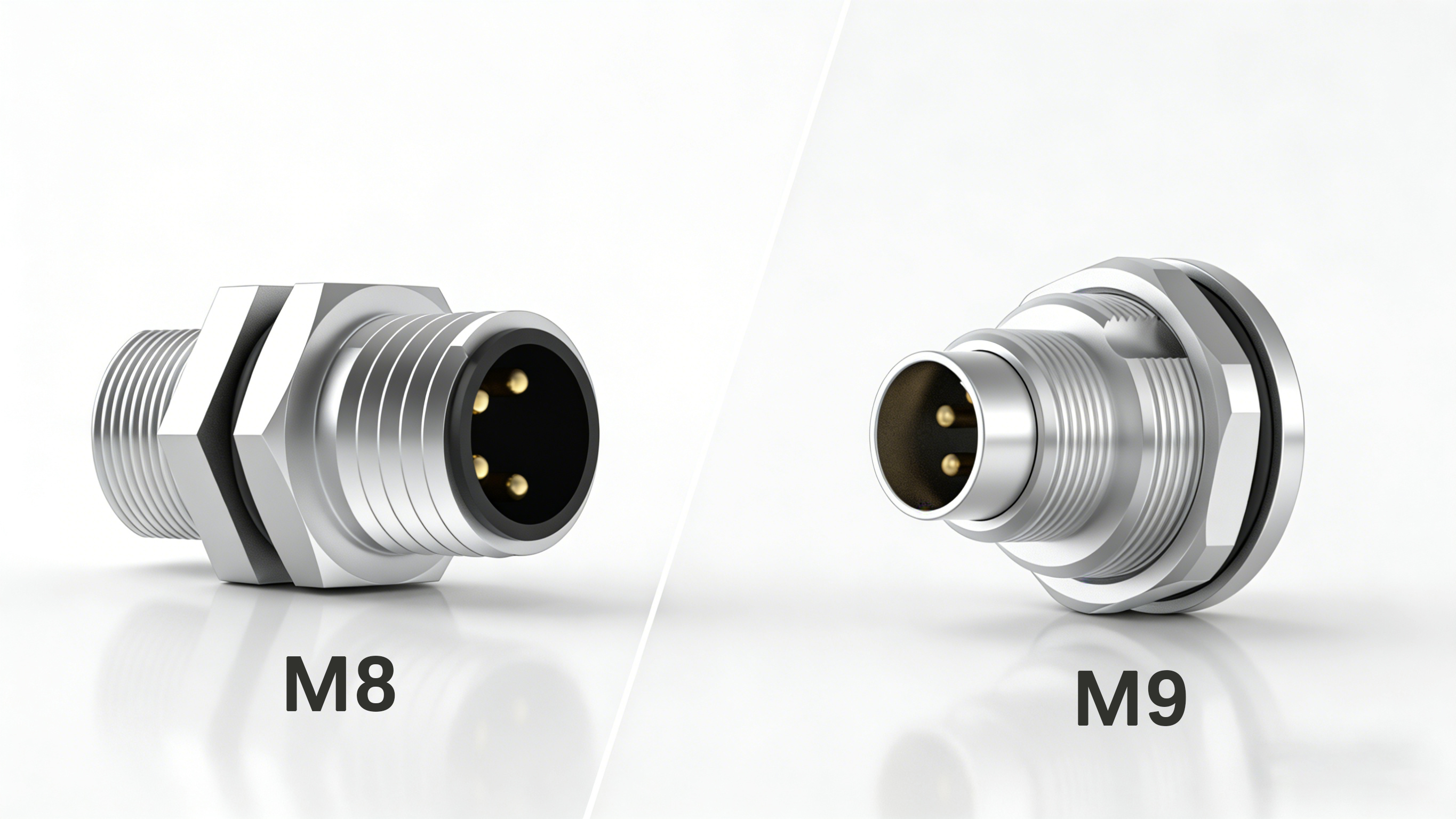

1. Core Basic Differences: Size and Structure

The most intuitive and critical difference between M8 and M9 connectors lies in the external thread diameter, which directly determines what kind of equipment they can be installed in and how much space they occupy.

• M8 Connector: 8mm thread diameter, smaller volume, the first choice for ultimate compactness, mostly used for ultra-small sensors and micro actuators.
• M9 Connector: 9mm thread diameter, slightly larger than M8, but with more abundant internal space, more stable contact layout, and more prominent vibration resistance and reliability.

Both adopt a threaded locking structure to ensure no loosening in vibration environments. However, M9 has a larger bite area and is more advantageous in strong vibration working conditions such as robots, AGVs, and mobile equipment.

2. Key Parameter Comparison

Simple Summary:

• M8: Focus on small space, fewer pins, light signal.
• M9: Focus on more pins, more stable, stronger working conditions, especially suitable for more integrated sensors and control modules.

3. Protection and Durability

Both can meet industrial-grade use, but with different focuses:

M8 Connector

• Standard IP67 dustproof and waterproof
• Suitable for indoor, dry, slightly humid environments
• Mostly used for fixed installation, low maintenance, low plugging scenarios

M9 Connector

• Usually achieves IP67+ enhanced protection
• Better sealing structure and locking strength
• More suitable for:
  • Outdoor/semi-outdoor
  • Dusty, oily, high humidity
  • Strong vibration, frequently moving equipment
  • Industrial robots, AGVs, automated vehicles

4. Application Scenario Selection

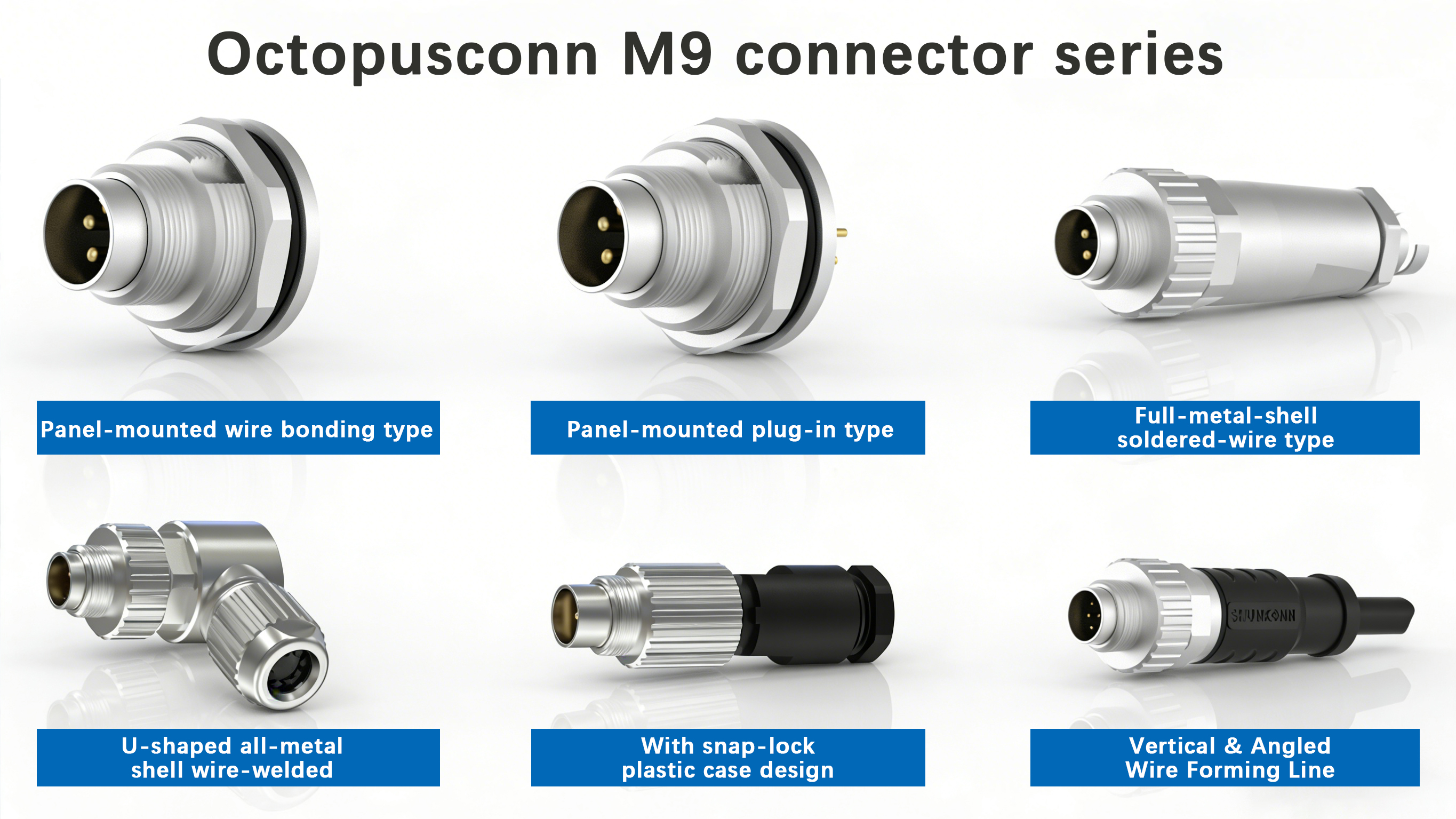

5. Octopusconn M8 / M9 Connectors

Octopusconn specializes in the R&D and manufacturing of industrial circular connectors, providing a full range of M8 and M9 connectors, covering straight/angled, shielded/unshielded, cable/panel mount, and molded cable assemblies to meet the needs of various automated equipment.

Product Highlights:

• IP67 high protection grade, waterproof, dustproof, oil resistant
• Threaded locking structure, strong vibration resistance, no loosening
• Gold-plated contacts, low contact resistance, stable signal
• Supports 3~8 pins multiple specifications, compatible with mainstream international brand sizes
• Customizable cable length, connector type, outlet method according to requirements
• Complies with CE, RoHS and other industrial certifications, stable and reliable quality

Whether it is new equipment selection, import substitution, or bulk procurement, Octopusconn can provide stable supply and fast response.

6. Selection Summary

One sentence to distinguish M8 and M9:

- Extremely small space, few pins, mild working conditions → Choose M8
- Multiple pins, strong vibration, harsh environment, pursuit of higher stability → Choose M9

As long as you grasp the three key points of space, pin count, and working conditions, you can quickly make the right selection.
