In core scenarios such as industrial automation, intelligent transportation, and marine equipment, the M12 connector, as a standardized industrial connection component, its stable operation directly determines the reliability of the entire equipment system. However, in harsh environments such as humidity, dust, vibration, and salt fog, M12 connectors often experience signal loss, poor contact, corrosion of the shell, and failure of waterproofing, which seriously affect production efficiency and equipment safety. Octopusconn (official website: https://www.octopusconn.com/) has been deeply engaged in the research and production of M12 connectors for many years. By leveraging a full range of encoded products (A/B/D/K/S/T/X, etc.) and rich industrial application experience, it has summarized targeted fault troubleshooting solutions to help customers quickly solve problems, and at the same time, relies on high-quality products to avoid fault risks from the source.

Fault manifestation

During the operation of the equipment, frequent disconnections, data transmission delays, and intermittent signals are common in scenarios such as industrial sensor connections, train communication systems, and outdoor monitoring devices.

The underlying cause

• Poor contact: The connector pins have oxidized, accumulated dust, or have been worn out due to excessive plugging and unplugging.
• Encoding mismatch: The selected M12 connector code (such as A/D/B type) is incompatible with the device interface, resulting in the interruption of the signal transmission link.
• Cable issue: The supporting cables are aging, damaged, or the welding points between the cables and the connectors are loose.
• Electromagnetic interference: Electromagnetic interference generated by high-frequency equipment in industrial environments. The use of non-enclosed M12 connectors was not adopted.

Steps for investigation and resolution

1. Verify compatibility of encoding: First, ensure that the connector encoding is consistent with the device interface (Octopusconn offers a full-encoding series of M12 connectors. You can query the compatible models on the official website https://www.octopusconn.com/, and it supports precise matching of multiple encodings such as A/B/D/K/S/T/X, etc.).
2. Check the pin condition: After disconnecting the connection, observe whether there is oxidation, blackening or dust accumulation on the pins. You can wipe the pins with absolute ethanol, let them dry, and then reinsert and re-execute. If the pins are severely worn, the connector needs to be replaced immediately.
3. Inspection of wire materials and welding: Check if the matching wire materials are damaged or aged. Pay special attention to whether the welding points between the connectors and the wire materials are loose. It is recommended to use Octopusconn pre-fabricated cables (Pre-fabricated Cable), which adopt precise welding technology to reduce the risk of joint loosening.
4. Upgrade shielding protection: In industrial automation, transportation and other highly interfered scenarios, replace the Octopusconn shielded M12 connector to enhance electromagnetic interference resistance and ensure stable signal transmission.

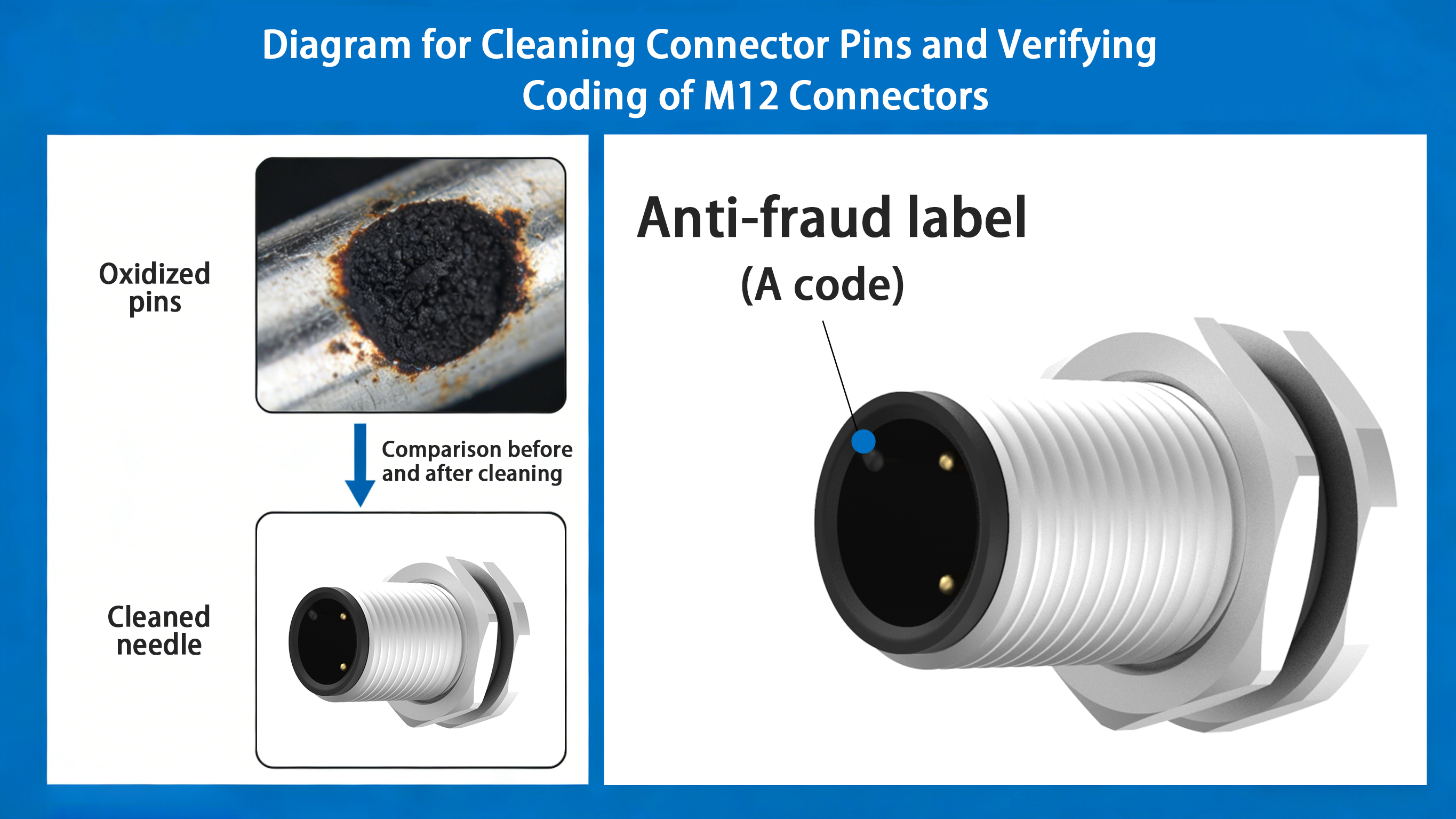

Diagram showing the cleaning of M12 connector pins and the verification of encoding

(left side: oxidized pins vs. cleaned pins; right side: encoding identification method)

Fault manifestation

The connector housing shows rust spots and the pins have oxidized and turned black. In severe cases, it can cause circuit short-circuiting. This is commonly seen in marine equipment, outdoor environments, water treatment systems, and other humid/salt spray scenarios.

The underlying cause

• Insufficient protection level: The selected M12 connector has a protection level lower than the requirements of the environment (for example, in outdoor scenarios, products with IP67/IP68 level are not used);
• Material not corrosion-resistant: Ordinary material connectors cannot withstand the erosion of salt spray and chemical substances;
• Sealing structure aging: The sealing rubber rings of the connector have worn out and aged, allowing moisture to enter and causing corrosion.

Steps for investigation and resolution

1. Confirm the protection level: For marine, outdoor, water treatment and other scenarios, IP67/IP68 grade M12 connectors need to be selected. All Octopusconn M12 products in the series meet protection standards of IP67 and above, and are suitable for harsh environments such as humidity and salt fog.
2. Replacement of corrosion-resistant material: We use stainless steel housing + gold-plated pins for the M12 connector. The Octopusconn M12 series adopts high-quality corrosion-resistant materials and gold-plated pins, which effectively enhance resistance to salt fog and corrosion, and prolong the service life.
3. Regularly inspect the seals: Check the connector gaskets every 3 to 6 months. If they show signs of aging or damage, replace them promptly. It is recommended to use the Octopusconn dedicated installation tools for proper installation to ensure the sealing performance.

Fault manifestation

Water seeped into the internal part of the connector, causing short circuits and equipment shutdown. This is common in outdoor surveillance systems, underwater equipment, and outdoor scenarios with abundant rainfall.

The underlying cause

• Insufficient protection level: No waterproof M12 connectors were selected, or the protection level is lower than the actual environmental requirements.
• Installation was not standardized: The connectors were not tightened as required, resulting in the sealing surfaces not fitting tightly together.
• Sealant ring damage: The sealant ring has aged, deformed or was lost during installation.

Steps for investigation and resolution

1. Upgrade waterproof rating: For outdoor and underwater scenarios, M12 connectors with IP67/IP68 ratings must be used. The Octopusconn M12 series supports IP68 deep water resistance and can meet the demanding requirements of underwater equipment, sewer inspection cameras, and other scenarios.
2. Standard installation procedure: Use the installation tool provided with Octopusconn to ensure that the connector is tightened properly and the sealing surface is fully in contact, to prevent water from entering due to loose installation.
3. Check the sealing gasket: Before installation, ensure that the sealing gasket is intact and properly installed. Replace the aged gasket regularly. Octopusconn provides original sealing component accessories to ensure the continuous effectiveness of the waterproof performance.

Fault manifestation

The connector has significant resistance during insertion and removal, or the locking mechanism fails and cannot be fixed properly. This is commonly seen in scenarios involving frequent insertion and removal, or in equipment with limited installation space.

The underlying cause

• Locking mechanism damage: The snap ring or threaded structure has broken or deformed.
• Insufficient installation space: Forced installation resulted in damage to the connector structure;
• Foreign object obstruction: There is dust or impurities stuck in the locking mechanism.

Steps for investigation and resolution

1. Remove foreign objects: Use compressed air to blow the locking mechanism to remove dust and impurities, and avoid forcefully inserting or pulling.
2. Check the locking structure: If the snap ring is broken or the thread is deformed, the connector needs to be replaced. The Octopusconn M12 connector adopts a threaded locking structure design, with a plug-in and unplugging life of over 500 times, making it more durable.
3. Optimize installation space: Choose Octopusconn's panel-type sockets (Panel-type Socket) or surface-mount sockets (M12X-Surface-mount socket) that are suitable for narrow spaces, and combine them with dedicated installation tools to enhance installation convenience and prevent structural damage.

• Regular cleaning: Clean the connector pins and the casing every 3 months, removing dust and oil stains to prevent oxidation.
• Standard insertion and removal: Avoid forceful insertion or removal. When inserting or removing, hold the connector body instead of the cable to reduce the stress at the connection point between the cable and the connector.
• Environmental Adaptation: Select products with appropriate protection levels and materials based on the usage environment. In harsh conditions, shorten the maintenance cycle.
• Spare parts reserve: For critical equipment, it is recommended to stock Octopusconn M12 connector spare parts. In case of failure, they can be replaced quickly, reducing downtime.
