In the year 2026, when industrial automation, intelligent equipment and sensor technology are advancing rapidly, M9 connectors, as the core category of miniature circular connectors, have become the "precise bridge" for connecting industrial equipment. Whether it is the connection of sensors in automated production lines, the wiring in the narrow spaces of robots, or the waterproof signal transmission of outdoor equipment, M9 connectors play an irreplaceable role. This article, as the most comprehensive ultimate guide for M9 connectors in 2026, will provide you with one-stop answers to all your questions, from definition, specifications, types, applications, selection, installation to procurement. At the same time, combined with Octopusconn's 13 years of industry expertise, it will recommend cost-effective and high-quality M9 connector solutions for you, helping industrial customers make efficient selections, reduce costs and improve equipment reliability.

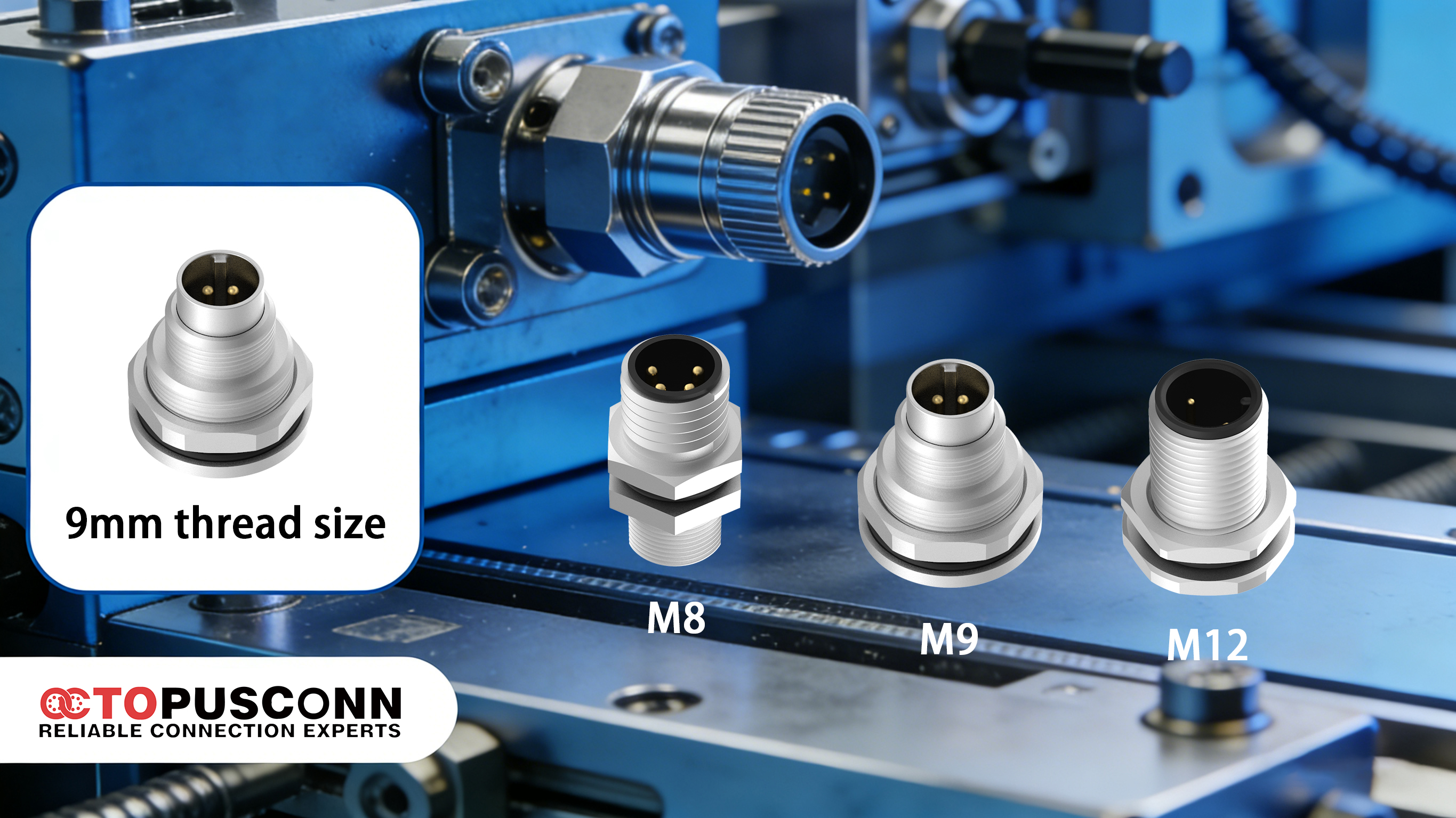

The M9 connector is an industrial-grade miniature circular connector with a 9mm thread size as its core identifier. It is mainly used for signal and power transmission in industrial scenarios. Its key features include a compact size, strong protection, and secure connection, making it suitable for narrow spaces and harsh industrial environments. Compared with M8 (8mm) and M12 (12mm) connectors, the M9 connector combines compactness with carrying capacity, filling the market gap between the two and becoming a "popular choice" in the field of industrial automation in 2026.
As a professional manufacturer with a 13-year history in the industrial connector field, Octopusconn has optimized the M9 connector technology. Based on international standards, it has upgraded the gold plating process of the contact components and the sealing structure of the housing, making the product more suitable for a wide temperature working environment ranging from -40℃ to +85℃. The contact resistance is ≤ 20mΩ, the insulation resistance is ≥ 1000MΩ, and it perfectly meets the core requirements of "high precision, high reliability, and high protection" for industrial equipment in 2026.

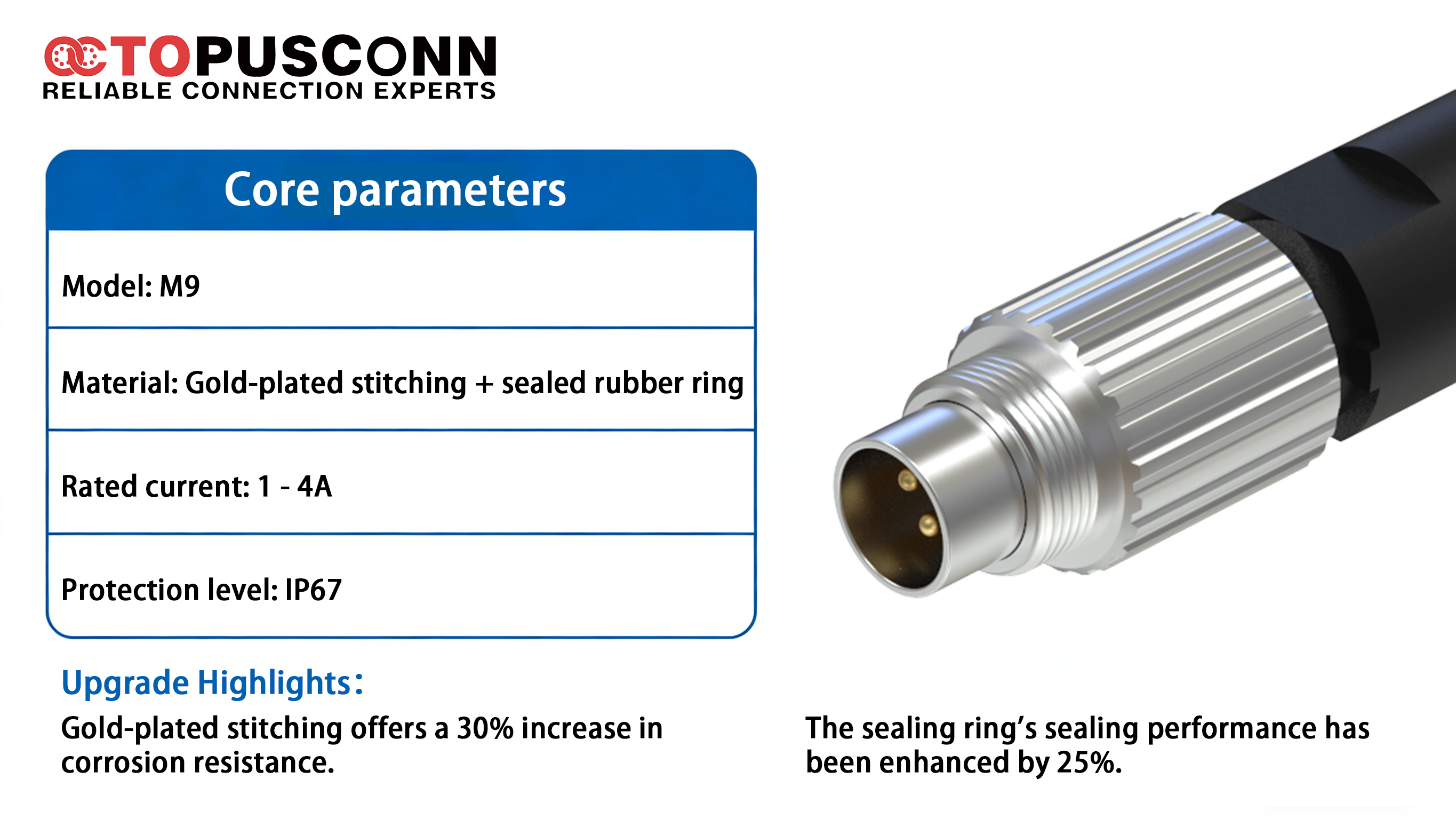

The core of the M9 connector selection lies in mastering its technical parameters. Considering the upgrade needs of industrial equipment in 2026, the following are the standard specifications of the M9 connector and the optimized highlights of the Octopusconn product, precisely matching the actual usage scenarios of industrial customers:
| Parameter category | Industry standard | Highlights of the Octopusconn M9 Connector Upgrade |
|---|---|---|
| Thread size | 9mm | Precise thread processing ensures a more secure locking and enhances the vibration resistance by 30%. |
| Protection level | IP67 (Standard) | Double-layer sealing ring design, suitable for harsher environments |
| Core count range | 2P-8P | The entire series is in stock and supports customized non-standard core numbers to meet special transmission requirements. |
| Rated current/voltage | 4A/ Core, 30V AC/DC | Optimize the conductive structure. Some models can support 6A, and are compatible with high-power devices. |
| Working temperature | -40℃~+85℃ | Upgrade in high-temperature resistant material, capable of withstanding short-term high temperatures, suitable for extreme outdoor environments |
| Insertion and removal life | ≥500 times | ≥500 times, the gold coating on the contact parts has been thickened, resulting in less wear and tear. |
| Certification standards | CE、ROHS | Multiple certifications including CE, ROHS, and FCC, and compatible with markets in over 50 countries worldwide |
The diversification of industrial scenarios in 2026 has led to the development of multiple types of M9 connectors. Different types are designed to meet various installation and wiring requirements. Combined with Octopusconn's product layout, the following is the most comprehensive classification explanation to help you make a quick selection:
As the core connection component, it is used for connecting sensors, actuators, and PLC control system signals/power supplies. The Octopusconn solution addresses the issue of unstable connections in dusty and vibrating production lines, thereby enhancing operational efficiency.
Suitable for the narrow spaces of robot joints and end effectors, with threaded locking and high insertion-pulling life, it has been applied to collaborative robots, AGV unmanned transportation vehicles and other equipment.
High-precision gold-plated contacts with low signal loss. Certified for medical use. Suitable for portable testing instruments and miniaturized medical detection equipment to ensure stable operation in a sterile environment.
With protection grades of IP67 and above, it is resistant to temperature, oil and corrosion. It can cope with outdoor humid, dusty, and high-low temperature environments and is widely used in outdoor Internet of Things devices.
When many industrial customers are choosing M9 connectors, they often fall into the误区 of believing that "the higher the parameter， the better" and "the lower the price， the better". Based on the industry trends in 2026 and the selection experience of Octopusconn over the past 13 years， here is a 5-step scientific selection method to help you choose the right product and reduce costs：
A1: The IP67 protection level can completely prevent dust from entering, and it will not get wet even when submerged in 1-meter-deep water for 30 minutes. It can be used in industrial sites with high humidity, dust, and mild splashing. If you need to work underwater for a long time, you can choose our custom IP68 model.
A2: The selection of core count mainly depends on the transmission requirements. 2P/3P is suitable for pure power transmission, while 4P-8P is suitable for mixed transmission of signals and power. If you are unsure, you can contact the Octopusconn technical team to provide the equipment parameters, and we will recommend the appropriate core count for you.
A3: Yes, we offer free sample testing service for new customers (only the shipping cost needs to be borne by the customer). Customers can inquire through phone, email or the official website. We will quickly arrange for the sample delivery and provide technical support to assist with the testing.
A4: Firstly, check if the connector is tightened and if the sealing ring is covering the contact parts; secondly, check if the wiring is secure and if there are any loose connections or improper crimping; finally, check if the contact parts are oxidized or worn. If the problem cannot be resolved, you can contact the Octopusconn after-sales team to obtain a professional solution.
A5: We offer full customization options, including non-standard core count, shell material (metal/special engineering plastic), wire harness length, and special wiring methods, which can meet the individualized needs of various industries.
In 2026, choosing a high-quality and highly compatible M9 connector will be crucial for enhancing the reliability of industrial equipment and reducing maintenance costs. Octopusconn, as a professional industrial connector manufacturer, has been deeply involved in the industry for 13 years, focusing on providing global customers with one-stop services including M9 connector supply in stock, customized development, technical support, and after-sales maintenance. If you have any requirements for selecting, purchasing, or customizing M9 connectors, please feel free to contact us. We will offer you free selection consultation, sample testing, and solutions to help your equipment operate efficiently.
Follow the official website of Octopusconn at https://www.octopusconn.com/ to get more information about M9 connectors, selection tips and industry trends, and unlock the new industrial connection solutions for 2026.
